Security fence: military site pvc coated clearvu no climb fence

Name: Security fence military site pvc coated clearvu no climb fence
Brand: LNF-wiremeshfence.com/buy-358_fence.html
Price: 18.88 USD

Security fence: military site pvc coated clearvu no climb fence Manufactures

Brand Name : LNF-wiremeshfence.com/buy-358_fence.html

Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

Security fence: military site pvc coated clear-vu no climb fence

What Features of our military site pvc coated clearvu no climb fence?

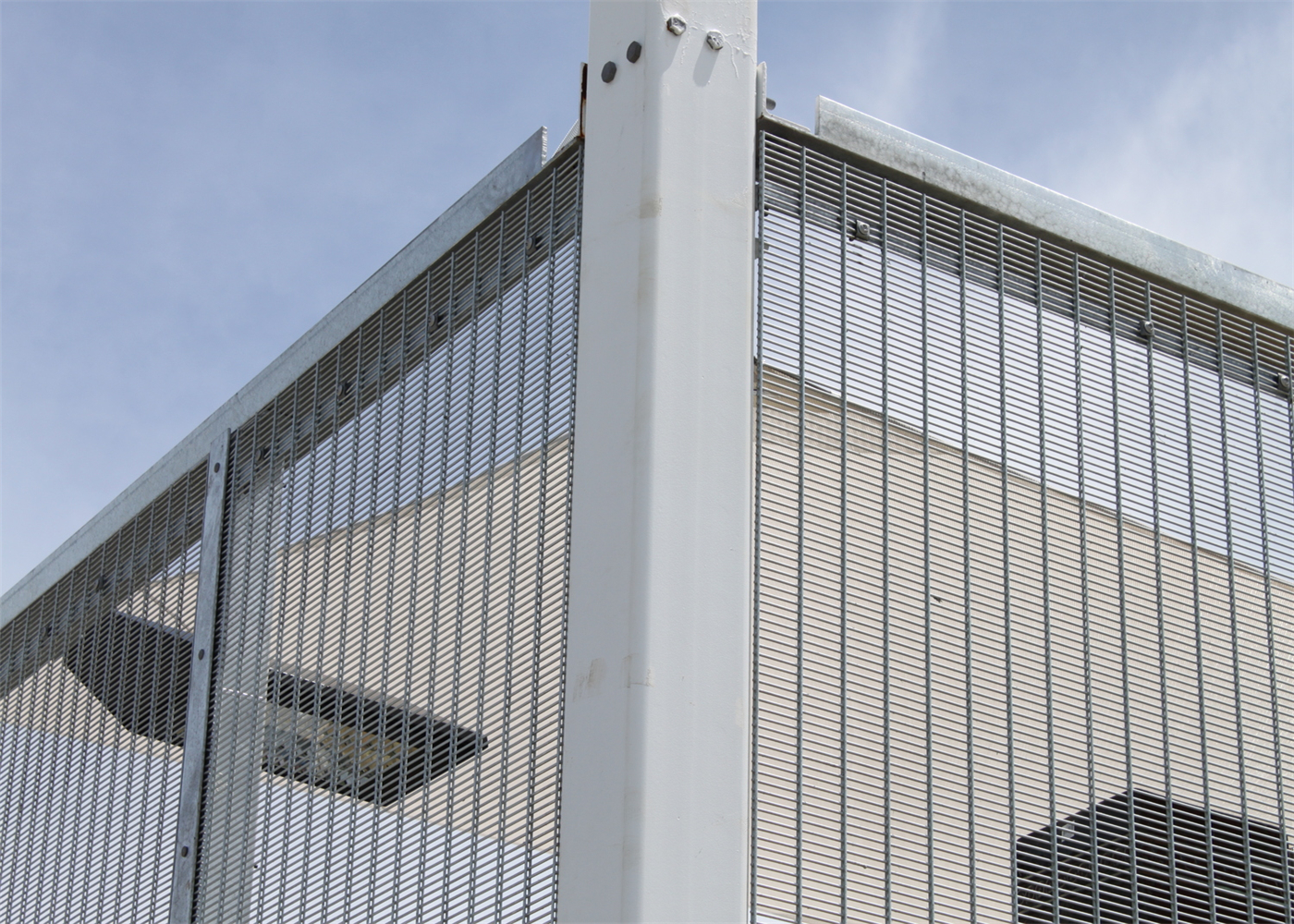

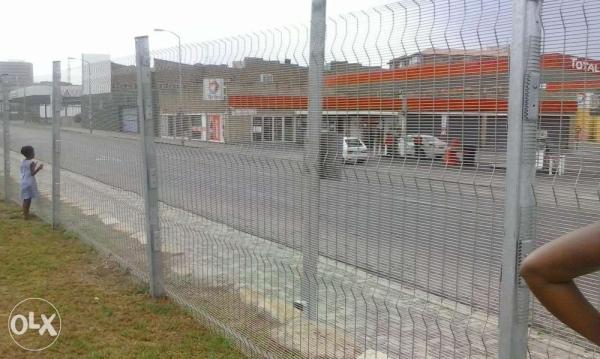

358 security fence is a welded mesh panel fence that is a high security anti-climb and anti-cut fence with excellent through visibility and resistance to vandalism.

Benefits
1. High-security fence, anti-climb and anti-cut
2. Flat panel that gives improved aesthetic appearance
3. Maximum strength and security
4. Excellent through vision
5. Wide range of color options
6. Available as a complete system

What Specifications of our military site pvc coated clearvu no climb fence?

Panel Specification:

Material:	low carbon steel wire
Process:	weaving and welding
Length:	2m, 2.5m as standard
Height:	1.8m, 2m, 2.4m, 2.7m, 3.0m, 4.0m, 5.2m
Horizontal wire:	4mm, 5mm, 6mm at 12.5mm centers
Vertical wire:	4mm, 5mm, 6mm at 76.2mm centers
Mesh size:	76.2mm×12.7mm
Surface treatment:	Electro galvanized, hot-dip galvaized, PVC coated, powder spraying coated

The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.

What applications of our military site PVC coated clearvu no climb fence?

Use with Securifor 358/Super 6 fencing systems.

2-358 security post is manufactured for use with Securifor 358 fencing system.

Secure and discreet
Efficient deterrence
Complete system
Supports customization
Our company can support the customization according to your drawings also design products according to your requirements to meet your requirements to your satisfaction.
Quality of our products is guaranteed, anti-corrosion is more than 10 years
Product Description

Anti climb mesh fence is also called 358 fence( 3"×0.5"×8 guage) also known as"prison mesh"oranti-climb fence,is a special fencing panel,we can make in our city,this production offers the best value for performance, durability and appearance,"358"comes from its measurements 3" x 0.5" x 8 gauge which equates to approx.76.2mm x 12.7mm x 4mm in metric.358 wire mesh fence is a professional structure designed for high security environments, combined with an steel framework,coated with heavy zinc or RAL color powder coating.
Processing of Anti climb prison fence :
Material - Straightening & cut wire - Welding - Galvanizing - Powder coating - Packaging
Specification
Panel-Type A(2D view)

Mesh	Wire Thickness	Surface Treatment	Panel Width	Height
76.2×12.7mm	Horizontal wire:3,3.5,4mm Vertical wire: 4mm	Galvanized and Electrostatic polyester powder coated or hot dipped galvanized	2.5m or 2.2m	1800mm
				2000mm
				2100mm
				2200mm
				2400mm
				2500mm
				3000mm

Panel-Type B(3D View)

Mesh	Wire Thickness	Surface Treatment	Folds Nos	Panel Width	Height
76.2×12.7mm	Horizontal wire:3,3.5,4mm Vertical wire: 4mm	Galvanized and Electrostatic polyester powder coated or hot dipped galvanized	3	2.5m or 2.2m	1800mm
			3		2000mm
			4		2100mm
			4		2200mm
			4		2400mm
			5		2500mm
			6		3000mm

Most popular size in South Africa
Vertical wire dia: 4.0mm
Horizontal wire dia: 3.15mm
Post section: 60*60*2mm
Panel width:2515mm/no. of bends: 4pcs/5pcs
Post length: 2400/2600/2800/3000/3600mm
Fence height: 1800/2000/2200/2400/3000mm
High security fence is available in a range of heights and specifications to meet your security fencing requirements, please checking the datasheet find more choices. All high security fence manufactured by our self and accordance with BS1722-14.

Application
358 high Security Prison Mesh fencing Application
Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.
Features
1)Anti-climb: More small openings makes it difficult to climb and penetrate.
2) Anti-cut: Robust wire and welded joints make it impossible to be
cut by conventional wire cutters
Surface Treatment
1.Hot dipped galvanized after fabricated
2.Galvanized material fabricated and then powder sprayed caoting&PVC Coated
3.Hot dipped galvanized after fabricated and then powder sprayed caoting&PVC Coated
The powder material from AKZONOBEL,Dupont,it can make strongly resist the corrosive and ultraviolet radiation.Doubld caoting layer make the fence long life more than 10years.
Zinc/Powder/PVC Coating thickness

Suface Type	Min	Max
Hot dipped galvanized	450g/m2	650g/m2
Powder coating	60μm	120μm
PVC Coated	450μm	650μm

Service
Quality Products:
We follow the policy of Seeking Development through Quality and Establishing Reputation via
Quality Products. We try to meet customers' requirements with excellent quality products.
Honest Service:
We offer honest service to customers. We provide products with sincere and excellent service and the most prompt delivery.
Innovation:
We have advanced inspection and production equipment and can develop new products to meet the demand of market. We can also accept customized orders. Our strong R&D capability enables us to innovate almost everyday.

Packing
1>Fence panel:plastic film+wood/metal pallet
2>Fence post:every post pack with a plastic bag(the cap is covered well on the post)+metal pallet
3>Accessory:small plastic bag+carton box
We Have CertifIcation For
1: ISO 9001:2008
2: CE
3: SGS FACTORY INSPECTION
4: No color change for all powder coating with 5 years
