corral fence panels

Name: corral fence panels
Brand: wiremeshfence.com/buy-farm_fence.html
Price: 8.88 USD

Brand Name : wiremeshfence.com/buy-farm_fence.html

Model Number : 1.6m 1.8m height 5 bar 6 bars

Certification : ISO

Place of Origin : American Design China Made

MOQ : 500 liner meter

Price : 8.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 steel pre hot dipped galvanized steel pipe

Color : Any Ral Color

Treatment : Hot Dipped Glavanized,Powder Coated

Thickness : 1.2-2.5mm

Type : Weld panels

Warranty : 5 -25 years depand on the treatment

Main Market : Oceania Europea ,Middle East ,USA ,AU etc

Accessoires : U and L lugs

Customized : Available

Sample : Free but pay freight cost

Square pipes : 40*40mm*1.6mm,50*50*1.6m

Round Pipes : 32mm,42mmO.D,1.6mm thick

Oval Pipes : 30*60*1.6mm,40*80*1.6mm

Height : 1.6m high with 5 bars,1.8m

Name : Heavy duty galvanized livestock panel ,cattle panel ,horse pane, ,sheep panels

Stanard Size : 1800x2100,1600mm x 2100mm

Contact Now

The corral fence panels are built from high quality galvanized steel tubes with five rails or six rails that come with pins and brackets to lock the panels together. The livestock fence panel is sturdy and reliable; there is no fear that the structure will collapse. The horse fence panels are popular in Australia, New Zealand, Canada, the UK, Ireland, etc.

Materials and Application

Corral Fence Panels We supply 6 Bar Cattle Rail 1.8m High Cattle Panel, horse panel, sheep panels and custom made panels suitable for all livestock. All products are manufactured using high quality galvanized RHS & pipe. We also supply swing gates in frames that can join the yard panels using pins. We can also manufacture panels & all other yard accessories for unique design, drawings, or your ideas if required. This includes all sizes & weights of RHS tubes Oval & Tube steel. They are made of welded hot dip galvanized pipes and wire for fencing livestock, such as cattle, cows, bulls, calves, dairy sheep, goats, etc. Regardless of the size of your heard, a well-designed, functional set of yards is necessary for effective corral cattle management. Your cattle yards should allow safe, efficient handling of the animals for drafting and loading-out and the additional ability to restrain the animals for medical procedures.

1. Our Cattle Yard Panels are 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.

2. Complete with Caps & Footplates.

3. Holes for the ground pin on one leg of each panel.

4. Elongated lug holes in brackets for ease when connecting

Cattle and Horse Cattle Fence Panels Specification

Panel Size	1.8x2.1m (for cattle,horse)	6 rails/ bars
Panel Size	1.6x2.1m (for sheep)	5 rails/ bars
Pipe Type	Square pipe	40x40mm, 50x50mm
	Round pipe	32mm, 48mm
	Oval pipe	30x60mm, 40x80mm
Pipe Thickness	1.5mm, 1.6mm, 2.0mm, 2.5mm
Gate Size	as per demands
Surface Treatment	Hot Dipped Galvanized or Powder coated

Round Tube Corral Fence Panels Specification

Style of stock panels	round tubes
Heights Length	1800mm x 2100mm
horizontal rails	32mm O.D x1.6/2.0mm thickness 42mm O.D X 1.6/2.0mm thickness(usually 6 round rails)
vertical pipe	32mm O.D x1.6/2.0mm thickness 42mm O.D x 1.6/2.0 mm thickness
Welding	Fully welded post brackets

Square Tube Corral Fence Panels Specification

We supply Corral Fence Panels, horse panels, sheep panels and custom made panels suitable for all livestock. All products are manufactured using high quality galvanized RHS & pipe. We also supply swing gates in frames that can join the yard panels using pins. We can also manufacture panels & all other yard accessories for unique design, drawings, or your ideas if required. This includes all sizes & weights of RHS, Oval & Tube steel.

Style of Corral Fence Panels	SHS
Heights Length	1800mm x 2100mm
horizontal rails	40 x 40mm SHS x 1.6mm thickness 50 x 50mm SHS x 1.6/2.0mm thickness
vertical pipe	40 x 40mm SHS x 1.6/2.0mm thickness 50 x 50mm SHS x 1.6/2.0mm thickness
Welding	Fully welded post brackets

Style of stock panels	oval tube Corral Fence Panels
Height Length	1800mm x 2100mm
horizontal rails	30 x 60mm x 1.6mm thickness 40 x 70mm x 1.6/2.0mm thickness
vertical pipe	40 x 40mm SHS x 1.6/2.0mm thickness 50 x 50mm SHS x 1.6/2.0mm thickness
Welding	Fully welded post brackets

Horse Fence Panel
Panel Size	1.8x2.1m (for cattle,horse)	6 rails/ bars
	1.6x2.1m (for sheep)	5 rails/ bars
Pipe Type	Square pipe	40x40mm, 50x50mm
	Round pipe	32mm, 48mm
	Oval pipe	30x60mm, 40x80mm
Pipe Thickness	1.5mm, 1.6mm, 2.0mm, 2.5mm

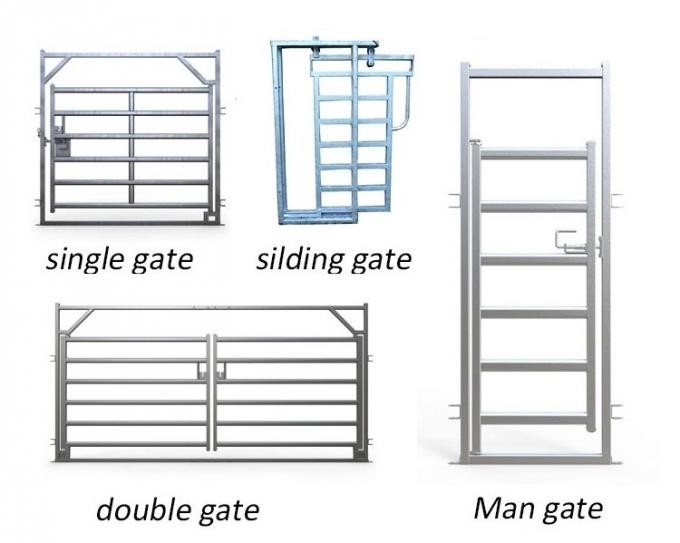

Gate Size	as per demands
Corral Fence Panels Surface Treatment	Hot Dipped Galvanized or Powder coated

Our Services

1.15 days after receiving the deposit payment.

2. We will choose high quality and low prices od the shipping company.

3. Loading the goods, we will track to ensure product safety, quick to arrive at the designated ports.

4. On The arrival of the goods, we will provide installation instructions and subsequent technical guidance.

5. Company for products and accessories, for a long time to provide various products accessories at the cost to the customer.

Corral Fence Panels Features:

1. Available in 4, 5, 6 rails.

2. Portable or permanent fencing.

3. No sharp edge to keep the horse cattle or sheep safe.

4. Our Corral Fence Panels are Easily assembled and disassembled.
