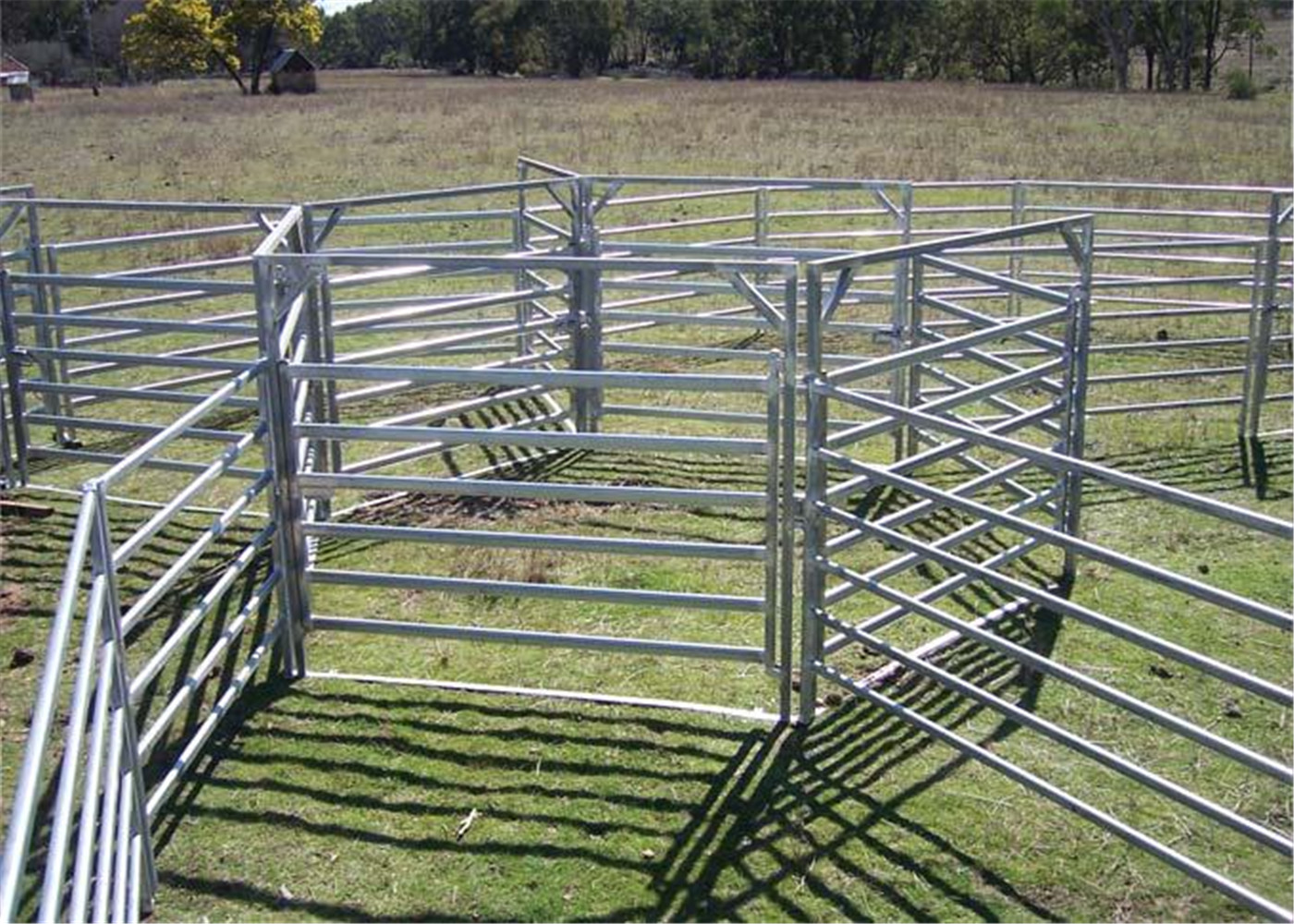

30X60mm Oval Pipe Cattle Livestock Yard Panel
heavy duty cattle panel is usually called cattle panel, horse panel, livestock panel, corral panel etc.It is fabricated with welded hot dip galvanized pipes for the use of fencing livestock, such as cattle, cow, bull, calves, Dairy sheep, goat, dog
Process: Firstly, we prepared the pipe(round pipe or the oval pipe, the square pipe), then put the pipe on the welded shaping machine, the pipes are galvanized, welded the pipe together, then make the spot smoothing, then silver painted.
Description:
Material hot dipped galvanized steel pipe
Size (H*L) 1.8*2.1m; 1.6x2.1
Horizontal Pipe
three types( round,square,oval)
1) round pipe:32mm, 42mm
2) square pipe:40*40mm; 50*50mm
3) oval pipe:30*60mm; 40*80mm; 115x42mm
Structural Style
one set=one net+two pins
Bars/Rails 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails
Applications Used in the protection of animals
Main Markets Australia, New Zealand, Canada, US, European countries and Asia countries
Different specifications are available according to customers' special inquiry or detailed drawings.
.Specification of Cattle Fence
| Specification | Normal size |
| Height x Length | 1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m 3.37*1.8m |
| pole style | Round pipe or square pipe or oval pipe |
| Pole specification | 32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
| Package details | In steel pallet or in bulk |
We can produce with your demand
2.Process of Cattle Fence
hot dip galvanized tubes—welded together—welding spots polishing—spots anti-rusting paint—spots silver paint
3.Surface treatment of Cattle Fence
hot-dipped galvanized or paint
4.Feature of Cattle Fence
1>Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
2>Robust: interlocking system makes the fence very stable:quality steel and fully welding makes the panel more stronger;heavy duty and anti-broken; high zinc or PVC coated make the fence durable
3>Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. And it benefit grassland protection.
5.Main markets of Cattle Fence: Australia, European countries, Canada, America and Asia countries
6. Different style of Cattle Fence:
1>round style
| Material | pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| Horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |
2>square tube style
| Material | pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |
3>Oval tube style
| Material | pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |

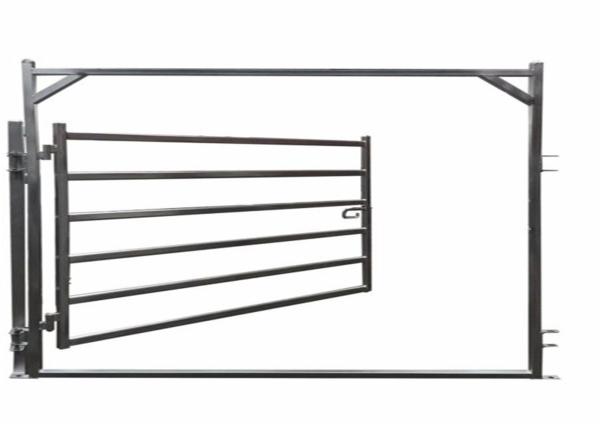

4>Cattle panel gate
| Height x Length: | 2200mm x 2000mm |
| Frame: | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: | hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges |
7.Application of Cattle Fence
Used in raising the animals,specially the cattle,the cow,the horse,the sheep etc.
