358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels

Product Categories
Top Fencing Co.Limited
Contact Now

358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels

Brand Name : LNF-wiremeshfence.com/buy-358_fence.html

Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Color : RAL 6005 ,9003 ,2008 and so on

Feature : Anti Cut ,Anti Climb

Mesh Opening : 3" x 0.5" x 8 gauge wire 12.7mm x 76.20mm wire

Treatment : Hot Dipepd Galvaized ,Powder Coated ,Painted

Service Life : 5years -25 years depand on treatment

Materials : High Tensile Wire ,Q235 Wire etc

Main Market : Africa ,Oceania ,Aisa

Sample : Free But Pay Freight Cost

Contact Now

358 security Mesh fencing / Military security fence /High-security security walls and welded wire mesh fence panels

358 High Security Mesh Fence is extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools.'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric
Durable Welded High Security Welded Wire Mesh 358 Anti Climb Anti Cut Fence Panel with high voltage pulse electric system
"358" comes from its measurements 3"*0.5"*8 gauge which means approximately 76.2mm*12.7mm*4mm (mesh opening* wire diameter).358
Anti Climb Security Fence is one security fence that is extremely difficult to penetrate through, because the small mesh aperture
is effectively finger proof, and extremely difficult to attack with traditional hand tools. High Security 358 Anti Climb Fence is
the ultimate security fencing system and it is widely used for border security protection.
358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels
358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels
358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels
Product Specification
Mesh
Wire Diameter
Surface Treatment
Panel Width
Panel Height
76.2x12.7mm
4mm
Galvanized
2.2m
1800mm
75x12.5mm
+ Powder coated
2.5m
2000mm
75x25mm
2.9m
2100mm
75x50mm
2200mm
2400mm
2500mm
3000mm
Application
358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels
The Features of 358 Anti Climb Fence
ANTI-CLIMB:More small openings,no toe or finger holds.
ANTI-CUT: robust wire and welded joints make cutting very difficult.
Surface Treatment of 358 Anti Climb Fencing
1) Use the hot-dipped galvanized (or electro galvanized) wire as material,after welding,begin PVC or plastic spraying.
2) Use the low carbon steel wire welded the panel,then electro or hot-dipped galvanized treatment, finally PVC treatment.
3) In Europe,generally choose the galvanized after welding or PVC after welding.
358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels
358 Anti Climb Security Fence Welded Wire Fence Panels
358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels
Materials: Heavy Low Carbon Wire, Heavy Mild Steel Wire, Stainless Steel Wire
Wire Dia. :4mm,4mm
Openings: 12.5x75mm,12.7x76.2mm
Fence Height:1800,2000,2400,3000,4000,5200mm
Coating: Forms of corrosion resistance include electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.
Posts: We could supply you various gauge and shape.

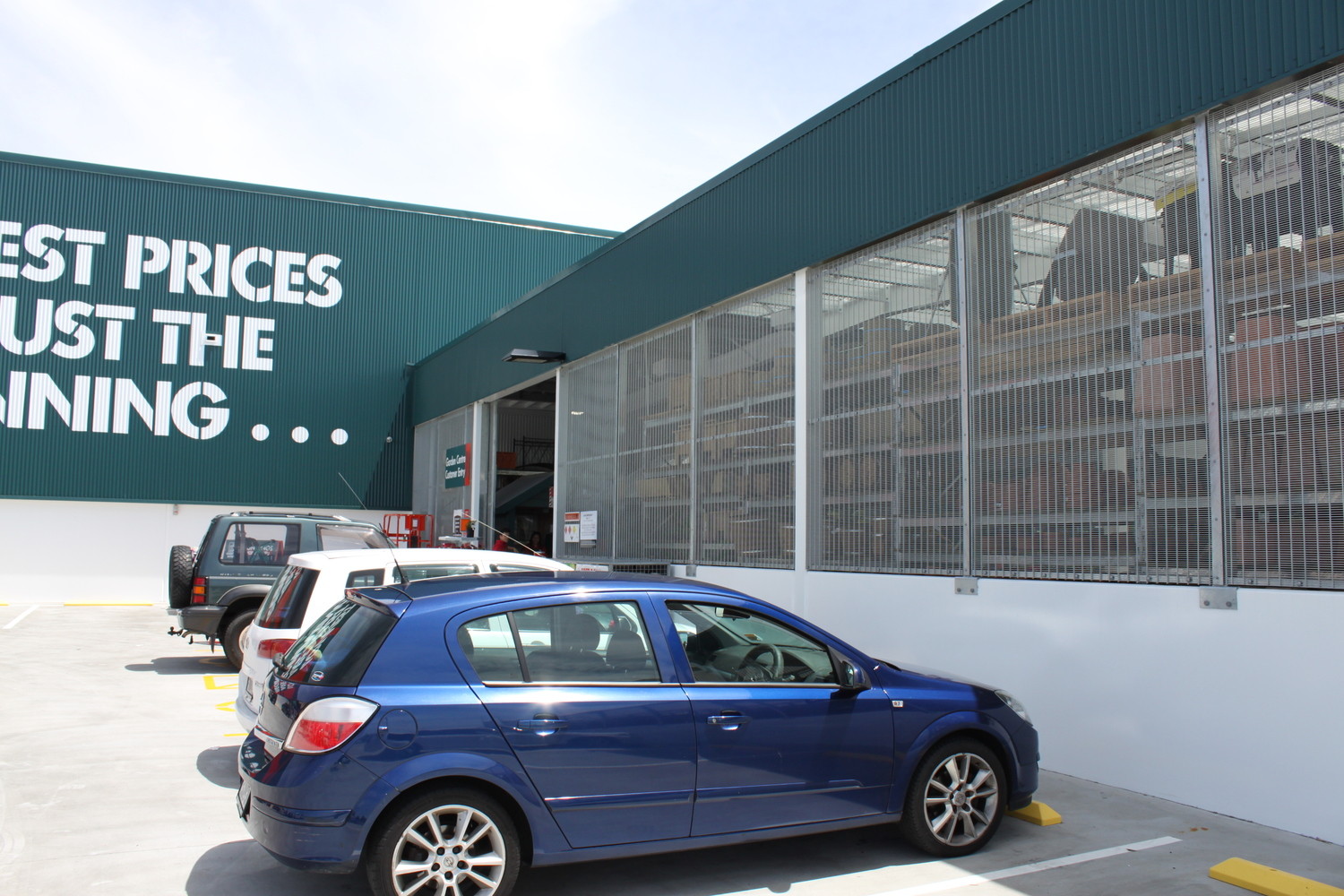

358 Fence applications:

1. Industrial and commercial sites

2. Airports, railways, school, local authorities
3. Border and some other high safety requirement field.

4. Public utilities, military

5. Secure units & prisons


358 Fence advantages:

1. Anti-Climb

2. Protects against cut-through

3. Excellent visibility

4. Quick and simple installation

5. High cost-effective

6. Low maintenance costs

358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels358 security fencing / Military security fence / High security security walls and welded wire mesh fence panels
358 fence panel specification details:
some details about the 358 fence panel mesh panel
mesh pane height 1.8m to 5.2m
mesh panel width 2.0m, 2.2m, 2.5m, 3.0m
hole opening 12.7mmx76.2mm(1/2''x3'')
wire diameter 3mm, 4mm, 5mm
material low carbon steel wire galvanized wire
finished hot dipped galvanized, polyester painting
polyester painting color any RAL color (dark green, black,etc.)
curves on request

some details about the 358 fence panel
C post 62mmx83mmx3mm
round post outside diameter:80mmx3mm
rectangular post 60mmx80mmx3mm,60mmx120mmx3mm
post length on request(normal 2.3mm-4m)
material square steel pipe, round steel pipe, C type steel
finished hot dipped galvanized, PVC coated
polyester painting color any RAL color (dark green, black,etc.)
