decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory

Product Categories
Top Fencing Co.Limited
Contact Now

decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory

Brand Name : LNF-BRC Wire Fence

Model Number : Top And Bottom Bended

Certification : ISO

Place of Origin : American ,Australia ,Canadan

MOQ : 500 liner meter

Price : 16.68$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 steel

Color : Any Ral Color

Treatment : Hot Dipped Glavanized,Powder Coated

Mesh Opening : 50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,50mm x 100mm

Diameter : 4.00mm ,5.00mm ,6.00mm

Type : Weld

Warranty : 5 -25 years depand on the treatment

Main Market : Europea ,Middle East ,USA ,AU etc

Accessoires : Clamp and Post Caps etc

Customized : Available

Feature : Top And Bottom Circled Design

Application : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence, 868 Fence

Trade Mark : N/M

Sample : Free but pay freight cost

Top Type : Round Circle

Nickname : Double Loop,Double Circled ,Double Ring ,Wire Fence

Contact Now

An ornamental double loop wire fencing has a circle bending on the top end of the panel to enhance the anti-climb capacity of the fence. The double loop wire fencing is welded by wire diameter 3.5mm-5.9mm(before treatment) high-strength iron wire, perfectly combined with security functions and aesthetic design. It features high security and a long lifetime. Wire Fence Panels Can add Various optional parts for higher security needs in many areas.

Advantages :

  • 1. Attractive appearance; Different designs from the typical fence, Round edges, Triangle edges and square edges make the fence more beautiful and elegant.
  • 2. Built-in rigidity; The rolled beam profile at each panel's top and bottom edge results in maximum rigidity.
  • 3. Longevity; The polyester coating can guarantee longevity. Different colors can make the fence become markedly.
  • 4. User friendly; Edge fence is easy to install and dismantle, has a Friendly top and bottom design, Safety and has low maintenance.

Quick Information

double loop wire fencing material: high-quality, low carbon steel wire
Fence post material: hot dipped galvanized roll steel plate
Surface treatment: include electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating. Welded mesh panels are PVC coating after galvanizing. The color coating usually is green and white; other colors are requested.
Color: any RAL series colo, on your request.
Features: Good corrosion resistance, heat resistance, nice appearance, easy and quick installation, Adaptable in various terrains.
Application: are used for residential areas, parks, homes, gardens, highways, railways, airports, farming, animal husbandry, protective barrier.
Our Services
1. more than fifteen years of export experience.
2. Factory directly sales
3. Free sample
4. OEM welcome
5. The fastest speed of delivery
6. After sells service available

Specification Double Loop Wire Fencing

Specification-1

Standard Product Specifications
Wire Diameter(mm)
Powder Coated 3.5/3.65 4/4.15 4.5/4.65 5/5.15 5.5/5.65 6/6.15
PVC Coated 3.2/4 4/5 5/6 6/7
Mesh Size(mm) 100*50 150*50 200*50
Installation Height(mm) 1100 1300 1600 1800 2200 2500
Panel Height(mm) 1000 1200 1500 1700 2100 2400
Panel Width(mm) 2500
Post Height(mm) 1400 1600 1900 2100 2500 2800
Post Center Distance(mm) 2450
Recommended Post(s) Round Post
Post Section Size(mm) 48 60
Standard Installations Pre-buried(50-70CM) Welded Joining Plate(5-10CM)
Anti-Corrosion Technique Powder Coated PVC Coated
Quality Duration (years) 15-20 15-20

Double Loop wire fencing Specification-2

Wire
Thickness
 Mesh Size Length Height
Round Post
Size
4.0mm
5.0mm
6.0mm
50*100mm
50*150mm
50*200mm
75*200mm
100*200mm
100*300mm
2000mm
2200mm
2500mm
3000mm
 1030mm
48*1.5/2.0mm
60*1.5/2.0mm

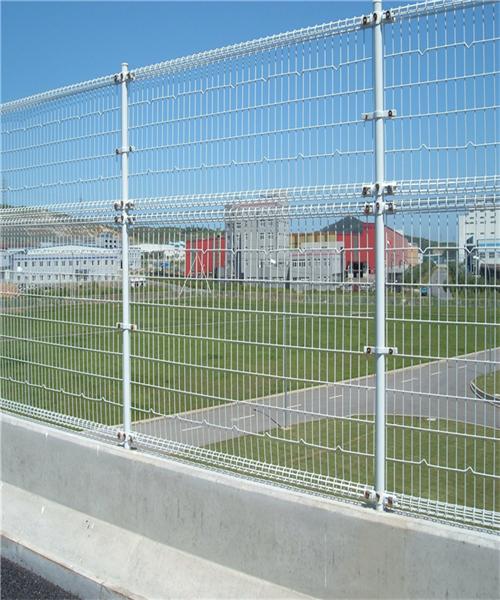

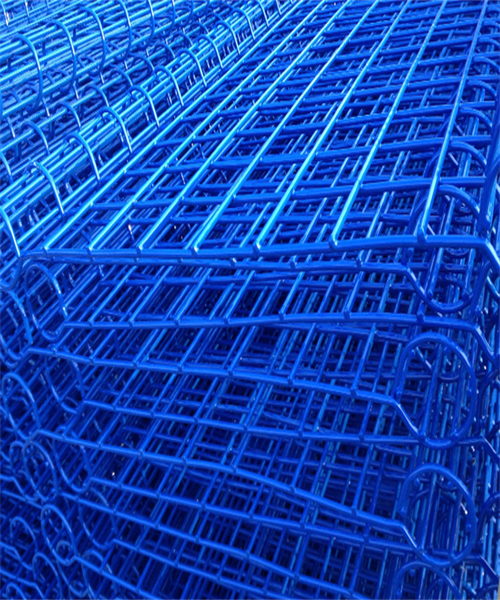

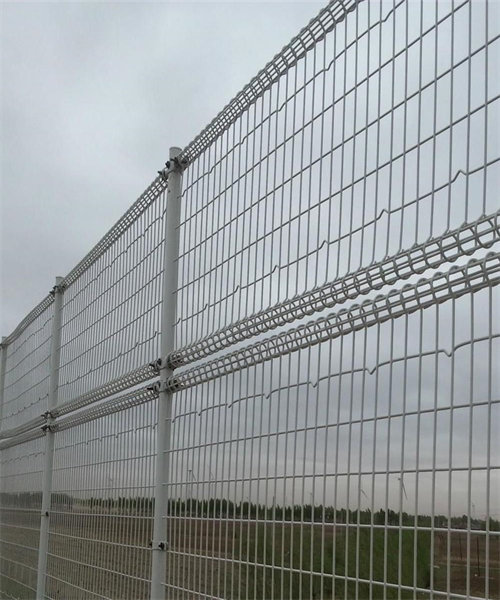

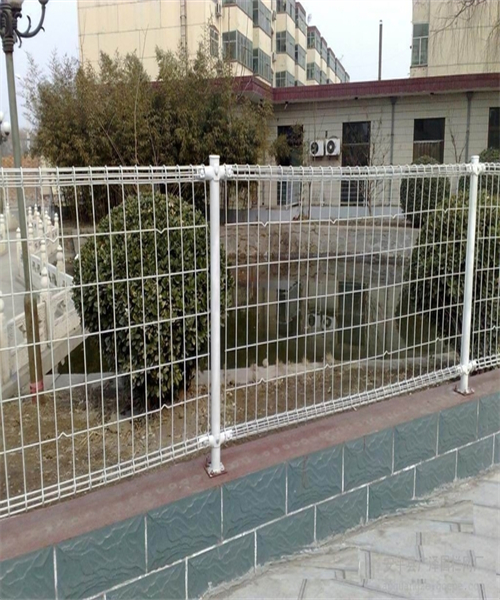

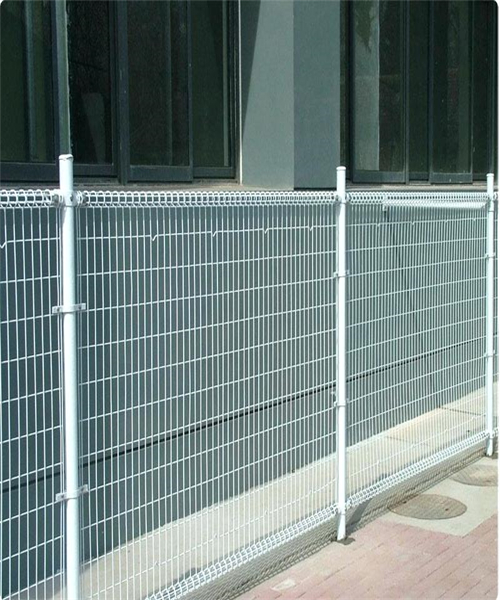

Photo double loop wire fencing

decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory
decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory
decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory decorative Double Loop Wire Fence/Double Roll Top Welded Fence/Double Wire Loop Yard Fence direct Anping factory

Double Loop Wire Fencing Panels Widely used to protect cities, Including gardens, Lawns, Zoos, Pools and lakes, Roads and uptowns, Decoration of hotels and so on.
