High Density Clearvue Outfield Fence

Name: High Density Clearvue Outfield Fence
Brand: LNF-ClearVU Wire Fence
Price: 18.88 USD

High Density Clearvue Outfield Fence Manufactures

Brand Name : LNF-ClearVU Wire Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

358 is extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools.

High Density Clearvue Outfield Fence

Popular size :

Panel height	2m~5m
Panel width	2m-3m
Wire diameter	3.15mm(H) * 4mm (V)
Opening	76.2*12.7mm
Square post	4040mm , 6060mm, 6565mm, 8080mm
Post thickness	1.5mm, 2mm, 2.5mm , 3mm
Post height	Normally 500mm higher than panel
Surface treatment	Powder painted

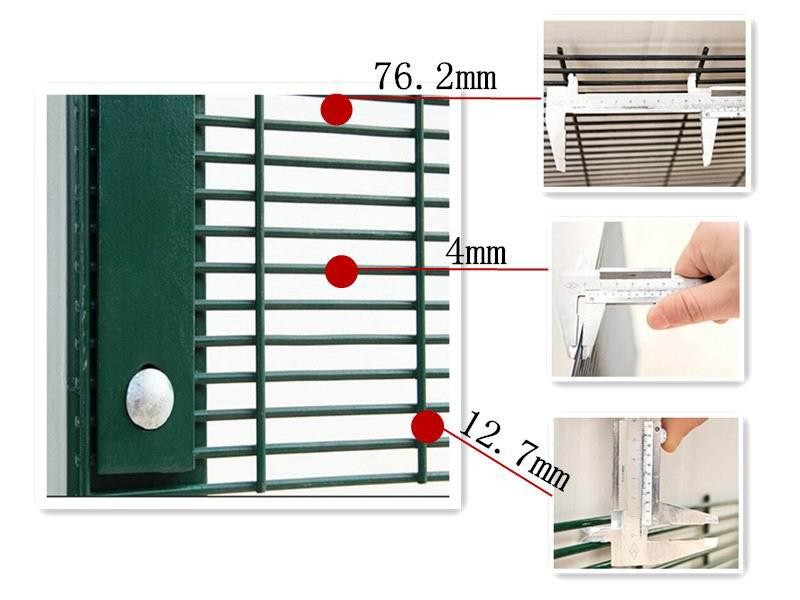

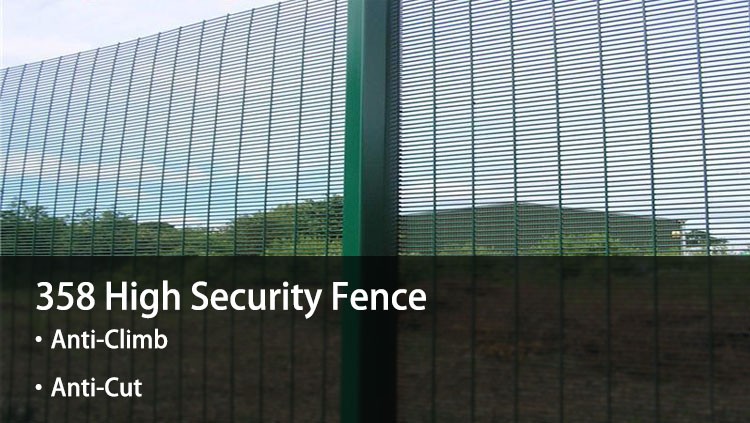

358 fence also known as " PRISON MESH ", this production offers the best value for performance, durability and appearance.'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional structure designed for high-security environments, combined with a steel framework,coated with heavy zinc or RAL colour Powder coating.

High Density Clearvue Outfield Fence

Wire Diameter	4mm (8 gauge), 5mm, 6mm
Mesh Aperture	76.2mm x 12.7mm ( 3'' x 0.5'')
Height	1.8m, 2m, 2.4m, 2.7m, 3m, 3.5m, 4m, 5m, etc
Width	2m, 2.2m, etc
Square post	50x50mm, 60x60mm, 80x80mmm, 100x100mm, etc
Surface treatment	Electro galvanized, Hot-dipped galvanized, Powder coated, PVC coated

Colour	Green ( Standard RAL 6005), White, Grey, Blue, etc
Top	Barbed wire, Razor wire can be used on top to make it a higher security

High Density Clearvue Outfield Fence

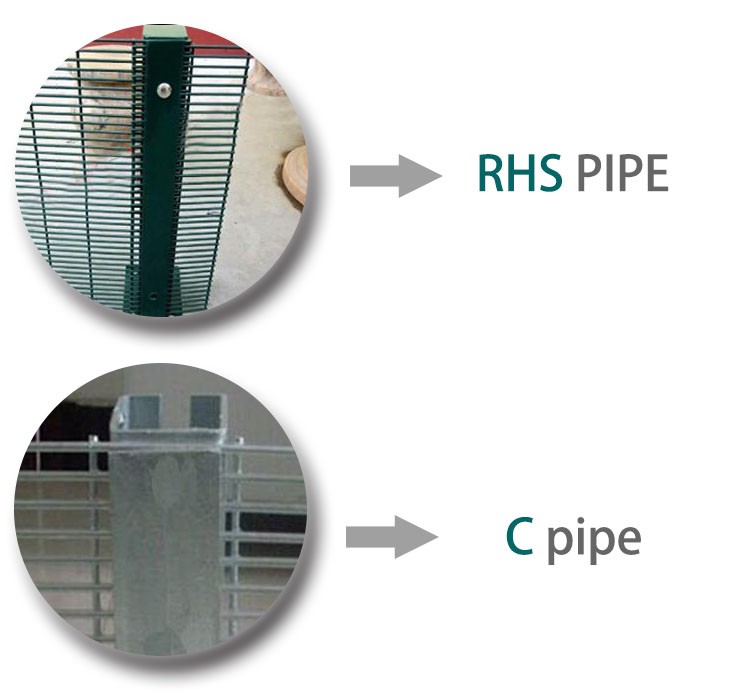

Pipes

High Density Clearvue Outfield Fence

Post -Type A (RHS Pipe)

Profile

Wall Thickness

Surface Treatment

Length

Rain hat

80x60mm

3.00mm

Galvanized and Electrostatic polyester

powder coated or Hot dipped galvanized

On the basis of panel height

Plastic or Metal

Post -Type B (C Post)

Profile

Wall Thickness

Surface Treatment

Length

Rainhat

83x64mm

3.00mm

Galvanized and Electrostatic polyester

powder coated or Hot dipped galvanized

On the basis of panel height

Plastic or Metal

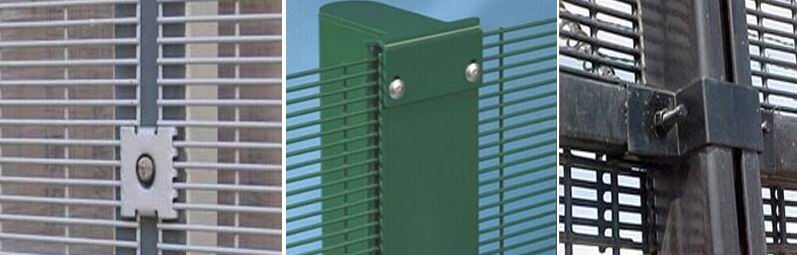

358 security fence accessories

High Density Clearvue Outfield Fence

The Panels and posts are joined together with bolts and nuts, using the steel flat bar or special clamps, all nuts are self-locking. This also can be designed as your special request.

Features

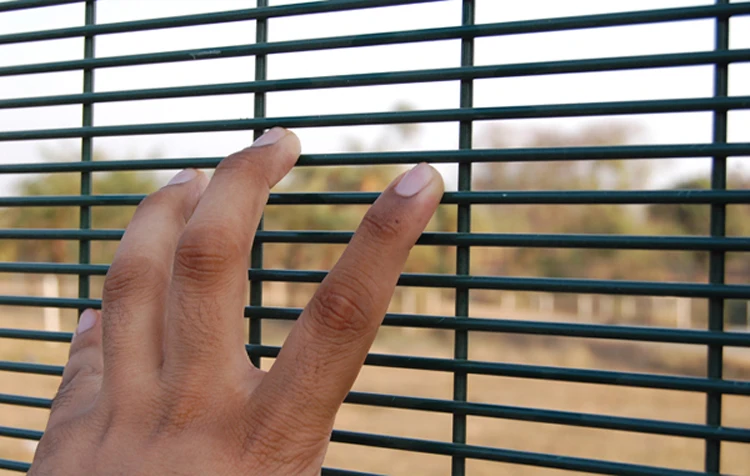

ANTI-CLIMB: More small openings, no toe or finger holds.

High Density Clearvue Outfield Fence

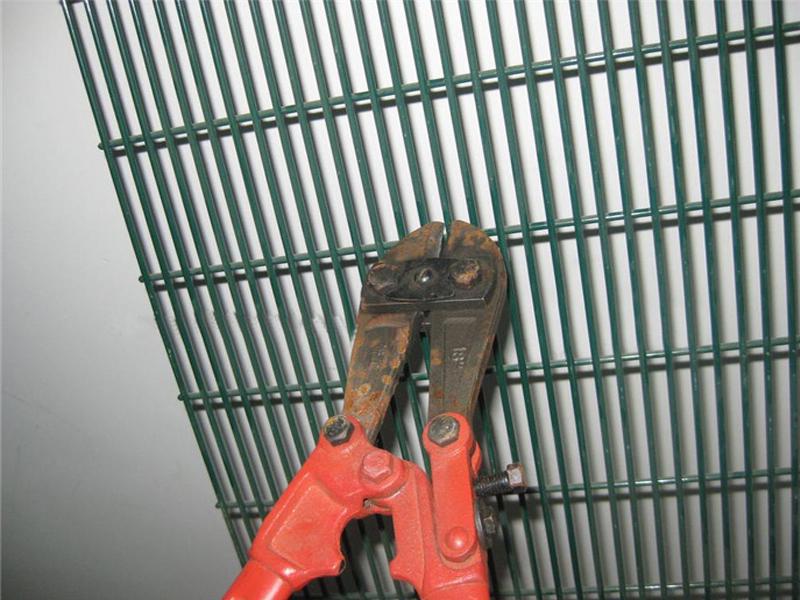

ANTI-CUT: Robust wire and welded joints make cutting very difficult.

High Density Clearvue Outfield Fence

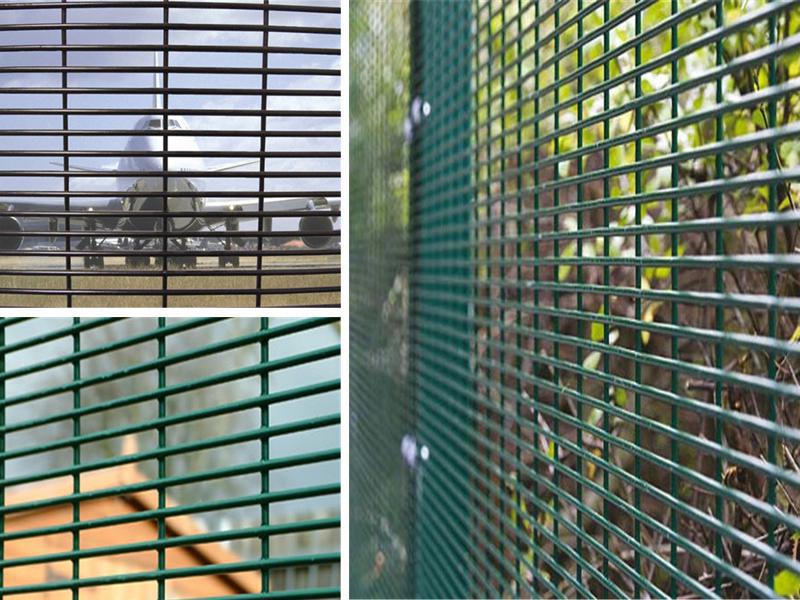

BETTER VISIBILITY: Flat, two-dimensional profile, easier to see through than chain link fence

High Density Clearvue Outfield Fence

Application

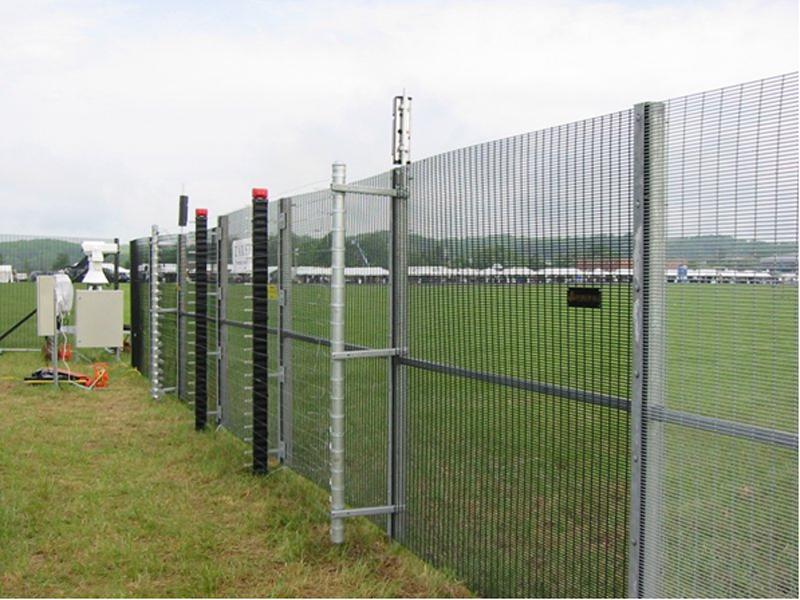

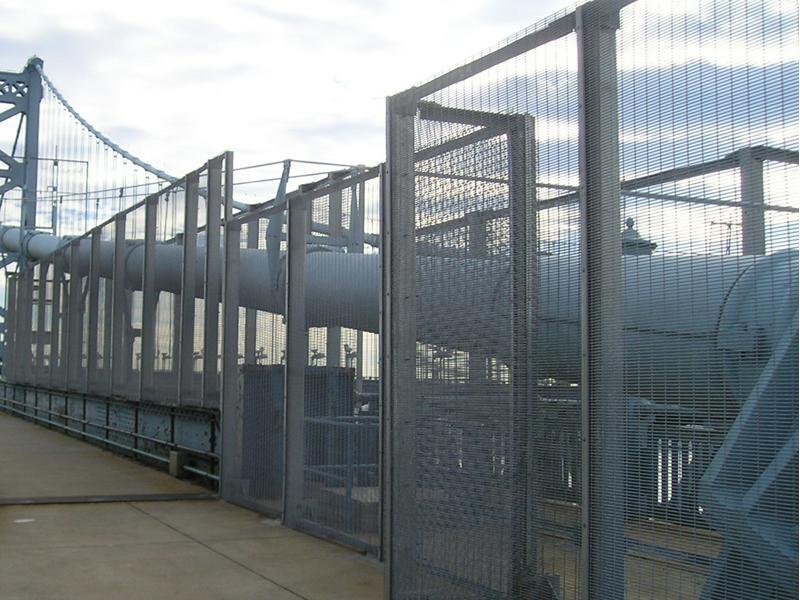

The system designed to give attractive, long-lasting and secure perimeter protection for retail, industrial and commercial properties, schools, and public utilities, it is ideally suited for

electronic alarm and detection systems no blind spots for CCTV,

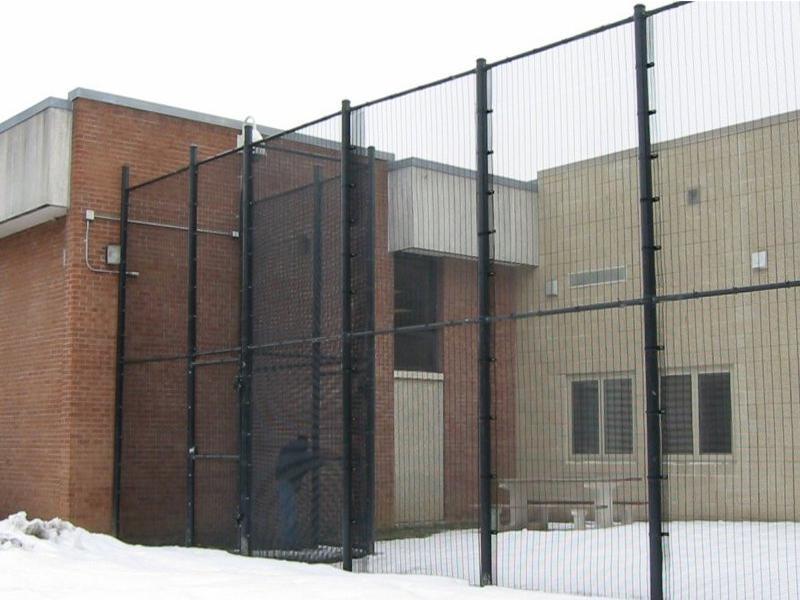

Military, airports, secure

units and prisons.

High Density Clearvue Outfield Fence
