High Security Clearvu Wire Fence Panels 1800mmx2515mm width

Product Categories
Top Fencing Co.Limited
Contact Now

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

Brand Name : LNF-Clearvu Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 STEEL

Color : Painted any color

Mesh Opening : 3"x0.5" or 12.70mm x 76.20mm

Diameter : 3.00mm,3.5mm ,3.8mm,4.00mm

Treatment : Gal ,Hot Dipped Gal,Powder Painted

Mesh Type : Weld at intersection

Market : African ,USA ,Australia

Service Life : 5 Year -25 Years depand on treatment

Contact Now

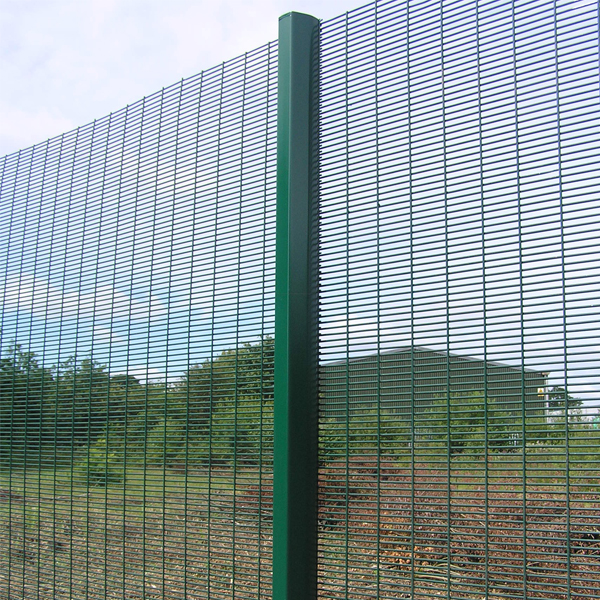

High-security fence

358 Anti Climb High Security Fence,Clearvu clear view Fence

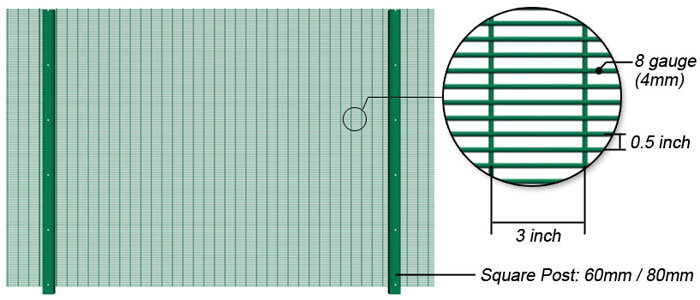

"358 fence" comes from its measurements 3"*0.5"*8" gauges which equates to approx.76.2mm*12.7mm*4mm(Length*Height*Diameter) in metric.
358 security fence are extremely difficult to penetrate.with the small mesh aperture being effectively finger proof,and extremely difficult to attack using conventional hand tools.
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
Name :
Anti climb fence/Clear view fence/Clearvu fence/ High security wire fence
Usage :
Farm/House/Land/Project/Jail/Warehouse/car parking/ school etc
Treatment :
galvanized + pvc coated;
galvanized + powder coated;
hot dipped galvanized after welding
Height :
1.2m; 1.5m; 1.8m; 2m; 2.2m; 2.5m etc
Wide :
2.2m; 2.5m etc
Wire mesh:
12.7x76.2x4mm (3"×0.5"×8 gauges)
Post :
50x50mm; 60x60mm; etc
Color :
black, green, blue, etc
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
Production
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
Other design is available
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width

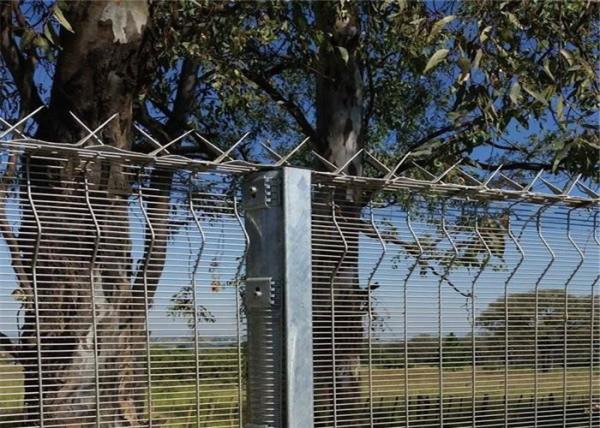

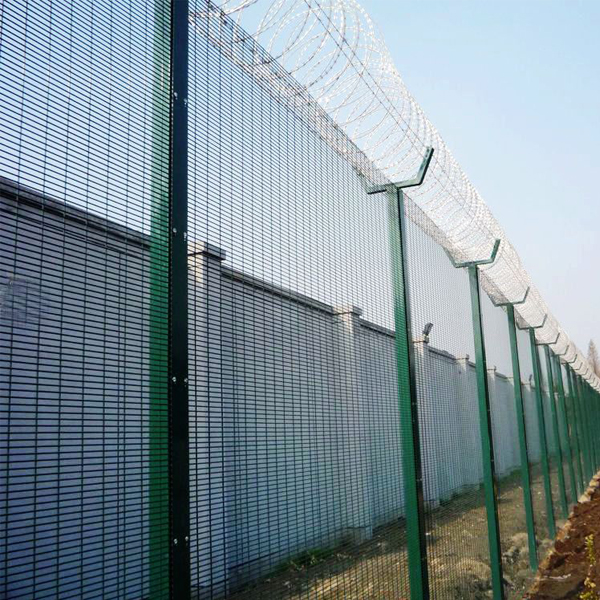

Wall spike on the top V arm, concertina wire, barbed wire on the top
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
angle plate on the top electric fence on the top
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
Beta fence post I beam post with electric fence at both side
Product packaging
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
1.)Packing with Plastic Film and metal packing metal belt.
2.)Packing with carton;wooden case;pallet.
3.)According to customers requirement.
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
  • Material: Low Carbon steel wire Q195
  • Type:Welded mesh
  • MOQ:10 sets
  • Surface Treatment: Electric galvanized,hot dipped galvanized, spray, PVE coated, PE coated
  • Technique: Welded
  • Usage: Used for garden,road,playground,park etc
  • Packaging Details:
    Packed with plastic film then on the pallets and then in wooden box
  • Delivery Detail:10-15 days after received
    your deposit
Specifications
Our Products
358 fence & Anti Climb Fence & 358 Anti Climb Fence
Surface treatment
Electric galvanized, hot dipped galvanized, spray, PVE coated, PE coated
Colors
Green, red, dark green, grass green, black, white, yellow, blue, and so on
Characteristics
(1)It is easy to work,bright color, easy to maintain.
(2)Difficult to corrosion, long life expectancy.
(3)uniform mesh,flat surface,high quality.
Packing
1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements.
Payment Terms
T/T( 30% deposit , 70% balance against BL copy ) ,or L/C, Paypal, Western Union,MoneyGram, Credit Card ,OA
Specifications
Master View 358
2.1m
2.4m
3.0m
Panel Height
2134mm
2438mm
2997mm
Panel Width
2515mm
2515mm
2515mm
Mesh Size
12.7x76.2mm
12.7x76.2mm
12.7x76.2mm
Horizontal Wire
4mm
4mm
4mm
Vertical Wire
4mm
4mm
4mm
Panel Weight
50kg
57kg
70kg
Posts
60x90x4mm
60x90x4mm
80x80x4mm
Post Length
2.8m
3.1m
4.0m
Clamp Bar
40x6m slotted
40x6m slotted
40x6m slotted
Fixings
8 security nuts
No. Of fixings
8
9
11
Other specifications could be customized by your requirements

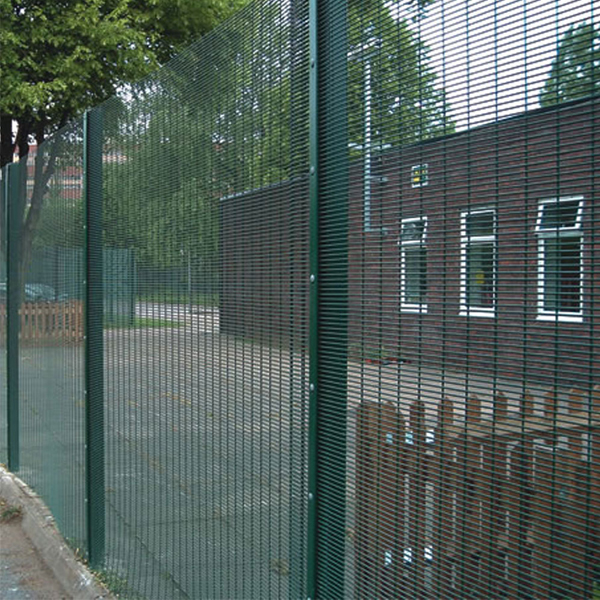

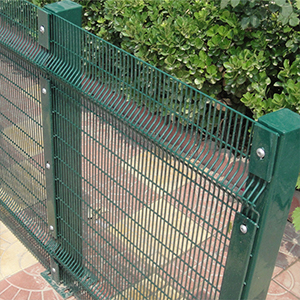

Used for park
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
Used for Prison security
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
Used for factory
High Security Clearvu Wire Fence Panels 1800mmx2515mm width

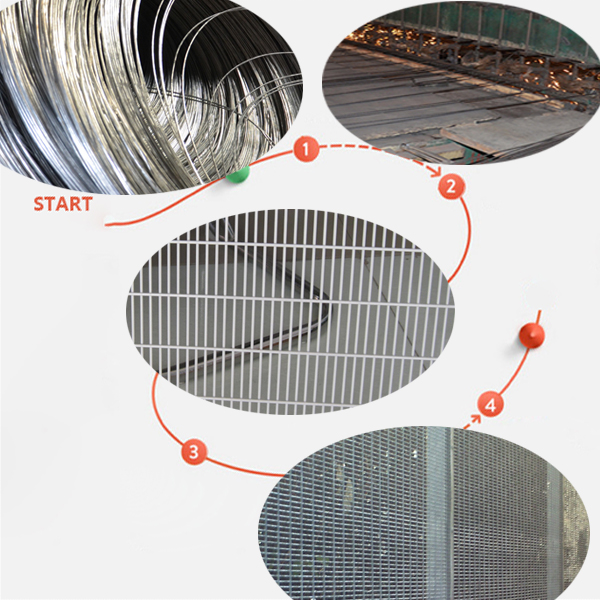

Produce process
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
Packing & Shipping
  • LCL: packed with plastic film then on the pallets
  • FCL: Nude packing
  • Other special package according to customers' requirements.
High Security Clearvu Wire Fence Panels 1800mmx2515mm width
  • Loading quantity: 130sets per 20ft container, 280sets per 40ft HQ.
  • Delivery time: Within 15-30days after receipt of advanced payment.
High Security Clearvu Wire Fence Panels 1800mmx2515mm width

High security: The panels are heavy welded mesh with small rectangular. Due to the large wire diameter (4 mm)
and the restricted width of the mesh (12.7 x76.2mm ) offers maximum security.

Attractive design: The horizontal bends make the system ideally suitable for an environment where security and
aesthetics go hand in hand.

Long lifetime: The coating technology is state of the art and guarantees extra high longevity.

Good viewing visibility: In spite of the small mesh aperture the see-through characteristics remain unimpaired
when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.

Complete system: The system includes panels with adapted posts and a specific fixing system.


Specification
Material
Iron, galvanized steel, galvanized wire
Surface treatment
Hot dipped galvanized, galvanized steel+powder coated
Connecting methods
Iron bar, Metal clip, plastic clip
Height
1000mm to 6000mm popular: 2500mm, 3000mm
Width
1000mm to 3000mm popular: 2200mm, 2500mm
Wire thickness
4mm to 6mm standard size is 4mm (BWG Gauge 8#)
Hole size
76.2mm*12.7mm (3 inch*0.5 inches)
Post
Square post, the rectangular post popular: 60*60mm, 80*60mm
V-top
Including angle iron, barbed wire, razor barbed wire

Application

Residential: such as properties, companies, gardens, house, etc.
Field: such as airport, playground, boundary, anti-intruder.
Protection: such as highway, railway, bridge, etc.
Prison, military, public utilities.

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

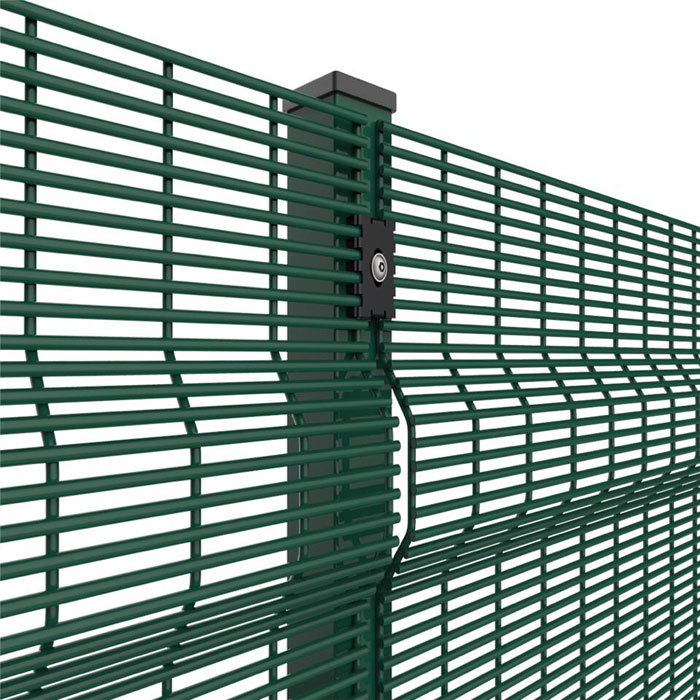

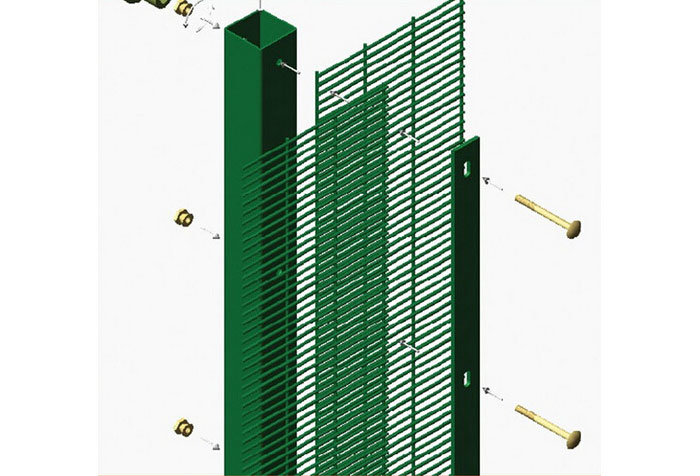

Installation: by using a flat bar

High Security Clearvu Wire Fence Panels 1800mmx2515mm width

Installation: by using the metal clip

High Security Clearvu Wire Fence Panels 1800mmx2515mm width
