358 mesh panels

Product Categories
Top Fencing Co.Limited
Contact Now

358 mesh panels

Brand Name : LNF-Clearvu Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 STEEL

Color : Painted any color

Mesh Opening : 3"x0.5" or 12.70mm x 76.20mm

Diameter : 3.00mm,3.5mm ,3.8mm,4.00mm

Treatment : Gal ,Hot Dipped Gal,Powder Painted

Mesh Type : Weld at intersection

Market : African ,USA ,Australia

Service Life : 5 Year -25 Years depand on treatment

Contact Now

358 Mesh Panels

358 mesh panels also known as " wire walls."We can make a special fencing panel in our city.358 Fence is the ultimate heavy-duty welded mesh panel providing the highest degree of security with excellent see-through visibility. It has a toe and finger-proof profile. With the spacing specification of 358 fences being 4mmx75mm x 12.5mm, fingers and toes can't go through. Our anti-climb fence is perfect as a guarded fence system because of its exclusive thickness of anti-cutting materials. Its framework is powerful resistant, and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the greatest relaxation and secured protection from the inside of their own.

Install of 358 fence panels

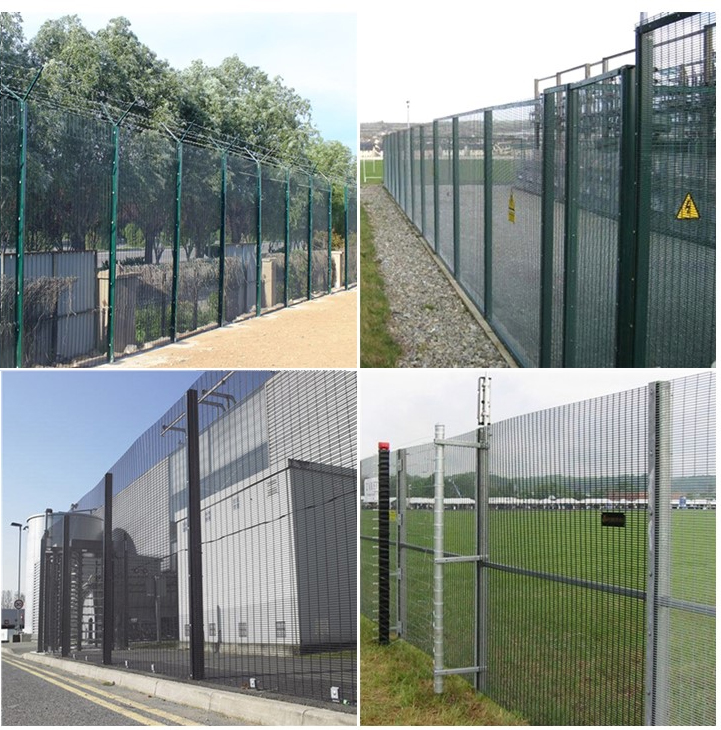

Some Project Cas
358 mesh panels 358 mesh panels

Specification 358 Mesh Panels

358 mesh panels available a huge range of specification for sale moreover it is available customized size and such as length and height width wire gauge and colors

Panel height
1.8m, 2.1m, 2.4m, 3m
Panel width
2.2m, 2.4m, 3m
Hole size
12.7x76.2mm, 12.5x75mm
Wire Thickness
4.0mm
Post length
2700mm, 3000mm, 3600mm
Post size
60x60mm, 60x80mm, 80x80mm
Material
Steel wire
Surface treatment
Powder-coated or PVC coated
Warm tips: fence can be custom-made according to your request.
Popular Specification
Wire Diameter
Mesh Size
Panel Width
Panel Height
Post Height
Post Type
Fitting



3.0mm
3.5mm
4.0mm


1/2"*3."
(12.7*76.2mm)


2000mm
2200mm
2500mm
1000mm
1200mm
1500mm
1800mm
2000mm
2200mm
2400mm
3000mm
1400mm
1600mm
2000mm
2300mm
2500mm
2800mm
3000mm
3800mm


Model
No.XLFP-04


Flat Plate

Packaging & Shipping

our 358 mesh panels come with the best value for performance, durability and appearance for
The wire fence is composed of quadrate post and high strength welded wire fence;
It has a strong erosion resistance and anti-ultraviolet;

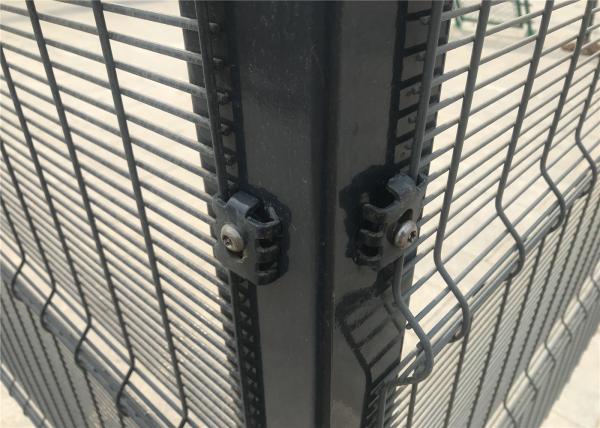

358 mesh panels are connected by a screw flat bar; the installation is straightforward and convenient.
The design of anti-cutting has a strong body that can reduce the destruction and anti-climbing.

Anti Corrosion Of 358 Mesh Panels

358 mesh panels; it is a special fencing panel we can make in our city; this production offers the best value for performance, durability and appearance.
Surface Treatment
1. Hot dipped galvanized after fabricated
2. Galvanized material fabricated, and then powder sprayed caoting&PVC Coated
3. Hot dipped galvanized after fabricated, and then powder sprayed caoting&PVC Coated
The powder material from AkzoNobel, Dupont, it can make strongly resist corrosive and ultraviolet radiation. The double coating layer makes the fence long life more than 10years.
Surface Treatment
Min.
Max.
Electric Gal.
20/m2
60g/m2
Hot dipped Gal.
35g/m2
700g/m2
100 microns
120 microns
Zinc/Powder/PVC Coating thickness
Surface Type Min Max
Hot dipped galvanized 50g/m2 650g/m2
Powder coating 60μm 120μm
PVC coated 450μm 650μm
Choice of colors:
Our 358 mesh panels Every RAL color desired can be delivered, for example, the colors corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available

Advantages

1. FACTORY-DIRECT PRICE
2.20 YEARS FACTORY
3. NICE QUALITY
4. QUICK SHIPPING WITH 7 DAYS
5. OEM IS ACCEPT
6. SUPPORT 7 DAYS REFUND MONEY
7. INSTALLATION GUIDE


358 mesh panels Manufactures

358 mesh panels Images
