Stainless steel knotted rope mesh 7x19 strand AISI 304 AISI 316

Top Fencing Co.Limited
Contact Now

Stainless steel knotted rope mesh 7x19 strand AISI 304 AISI 316

Brand Name : LNF-ROPE MESH

Model Number : ROPE MESH 2"

Certification : ISO

Place of Origin : AUSTRALIA

MOQ : 100sqm

Price : 12.88$/m2

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 10000 sqm per week

Delivery Time : 5 work days

Packaging Details : Australia Standard Stillage

Material : Stainless Steel Wire,316L stainless steel,Galvanized Steel Wire

Application : Protecting Mesh,Filters,Woven Wire Mesh,decorative cable mesh

Type : Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh

Weave style : Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave

Technique : Woven,Welded Mesh,Perforated,Weave

Feature : Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance

Wire diameter : Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized,1/16"

Usage : filter,Protection,decorative wire mesh,oil,aviary mesh

Hole shape : Diamond,Square Hole,Rectangular,as per requirement,round hole

Color : Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized

Product name : SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird

Width : 0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m

Length : 30m,2-4m,30m per roll or as required,1-30m,30m/roll 50m/roll

Surface treatment : polishing,black/ pre-gal/hot dip gal,Mill.Coloer Finish

Sample : Available,Free

Mesh size : 8-500 mesh,20mm-160mm,as your requirement

Size : 3"*3",4"*4",1"*1",1.5"*1.5",Customized

Advantage : Superior wire,no noise,corrosion resistance,High strength,Wear-resisting

Aperture : 25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized

Contact Now

Stainless steel knotted rope mesh is made from high tensile stainless steel of 304, 316, 304L, and 316L. And the two main rope constructions of stainless steel ropes are seven × 7 and 7 × 19, and 1 × 7 and 1 × 19 are also supplied. The standard angle is 90°. The mesh cannot hurt hands on its excellent softness. And it will not hurt animals and birds either. So it is widely used as stainless steel zoo mesh to protect animals, and it can make the visitors enjoy animals free of danger. Besides, it is used as stainless steel aviary mesh and bird cages to make birds live comfortably.

Knotted cable mesh is made from stainless steel ropes without ferrules, and the standard angle is 90°. Knotted rope mesh has an aesthetic appearance, making it suitable for decoration.

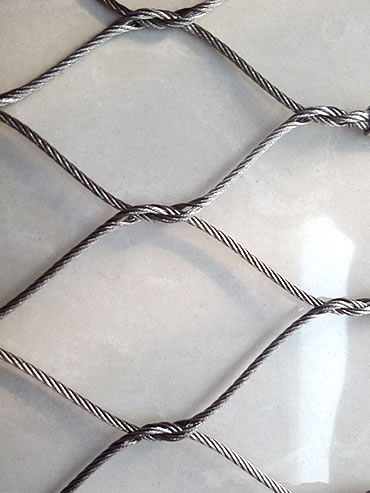

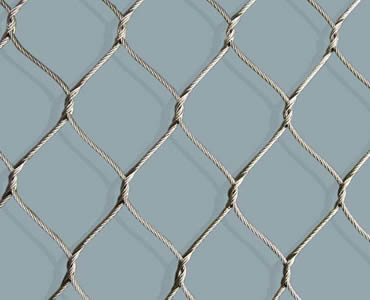

Stainless steel knotted rope mesh 7x19 strand AISI 304 AISI 316 Stainless steel knotted rope mesh 7x19 strand AISI 304 AISI 316

Packaging Details:

  • Packed stainless steel knotted rope mesh in a roll with plastic bag inside, carton box or wooden case outside.
  • Packed stainless steel mesh netting as customers' requirements.

Features:

Our stainless steel knotted rope mesh has significant advantages over similar products in many aspects.

  • Soft but strong. Knotted rope mesh is made of stainless steel ropes whose constructions are seven × 7 and 7 × 19, so stainless steel knotted mesh netting is very soft and will not hurt human bodies and animals. However, the whole mesh has firm construction. It can bear heavy snow and gale.
  • High flexibility and wide application. Stainless steel knotted cable mesh has a unique structure, and its width, length, rope diameter, and opening size are all customised. What's more, irregular shapes are also supplied. So it is very flexible, and it can be applied in many places around us.
  • Excellent visibility. Stainless steel rope mesh has unique rhombic openings, which give the product good visibility. Therefore, knotted rope mesh is suitable for zoo mesh and bird cages. And stainless steel rope mesh allows visitors to watch animals better and prevents visitors from being hurt by animals effectively. In other words, stainless steel knotted rope mesh shortens the distance between visitors and animals.

Advantages Stainless Steel Knotted Rope Mesh

  • Close to nature and environmentally friendly. Stainless steel wire rope mesh can be used in any climate and environment. And it is resistant to rust, although it is subject to violent sunlight, rain, snow and fog. So its service life can be up to more than 30 years. Besides, it can be used repeatedly. Above all, it doesn't need maintenance after installation.
  • Luxury appearance. Stainless steel rope mesh has a smooth appearance and diamond-shaped openings. The stainless steel knotted cable mesh itself is a beautiful landscape.
  • Outstanding elasticity and buffer ability. Stainless steel knotted rope mesh has good elasticity and buffers ability. Therefore, it is resistant to impact from animals when used in zoos. Above all, neither animals nor stainless steel wire cable mesh will be hurt. And it can provide a safe and comfortable living environment for animals and birds.
Knotted rope mesh with diamond holes features excellent visibility. Rope mesh with knots features soft but firm.

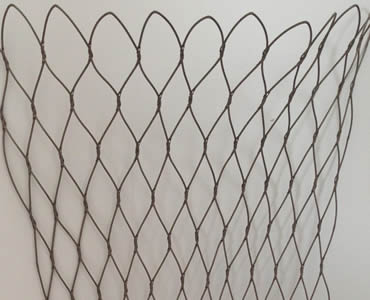

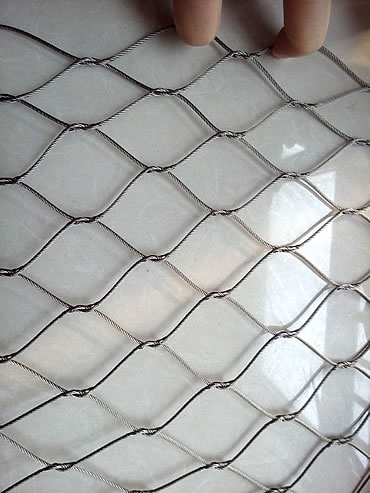

Stainless steel knotted rope mesh 7x19 strand AISI 304 AISI 316 Stainless steel knotted rope mesh 7x19 strand AISI 304 AISI 316

The specification of stainless steel knotted rope mesh

Code Rope Construction Rope Diameter Opening Size Breaking Force
Inch mm Inch mm KN
SKRM-01 7 × 19 1/8 3.2 4.7" × 4.7." 120 × 120 7.38
SKRM-02 7 × 19 1/8 3.2 4" × 4." 102 × 102 7.38
SKRM-03 7 × 19 1/8 3.2 3.6" × 3.6." 90 × 90 7.38
SKRM-04 7 × 19 1/8 3.2 3" × 3." 76 × 76 7.38
SKRM-05 7 × 19 1/8 3.2 2" × 2." 51 × 51 7.38
SKRM-06 7 × 7 3/32 2.4 4" × 4." 102 × 102 4.18
SKRM-07 7 × 7 3/32 2.4 3.6" × 3.6." 90 × 90 4.18
SKRM-08 7 × 7 3/32 2.4 3" × 3." 76 × 76 4.18
SKRM-09 7 × 7 3/32 2.4 2.4" × 2.4." 60 × 60 4.18
SKRM-10 7 × 7 3/32 2.4 2" × 2." 51 × 51 4.18
SKRM-11 7 × 7 5/64 2 3" × 3." 76 × 76 3.17
SKRM-12 7 × 7 5/64 2 2.4" × 2.4." 60 × 60 3.17
SKRM-13 7 × 7 5/64 2 2" × 2." 51 × 51 3.17
SKRM-14 7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
SKRM-15 7 × 7 1/16 1.6 3" × 3." 76 × 76 2.17
SKRM-16 7 × 7 1/16 1.6 2" × 2." 51 × 51 2.17
SKRM-17 7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
SKRM-18 7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
SKRM-19 7 × 7 1/16 1.6 1" × 1." 25 × 25 2.17
SKRM-20 7 × 7 3/64 1.2 2" × 2." 51 × 51 1.22
SKRM-21 7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
SKRM-22 7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
SKRM-23 7 × 7 3/64 1.2 1" × 1." 25 × 25 1.22
SKRM-24 7 × 7 3/64 1.2 0.8" × 0.8" 20 × 20 1.22
All the parameters above can be modified.
