Sydney Garrison Fence

Product Categories
Top Fencing Co.Limited
Contact Now

Sydney Garrison Fence

Brand Name : Garrison Fencing

Model Number : Garrison-1200mm-1500mm-1800mm-2100mm-2400mm

Certification : AS/NZS1163& AS/NZS4506-1998

Place of Origin : New Zealand And Australia Design

MOQ : 100

Price : 38.88$

Payment Terms : TT 30% deposit balance 70% at sight of done cargo

Supply Ability : 5000

Delivery Time : 7 days

Packaging Details : Metal Pallet With Plastic Jacket

Materials : Q235

Color : Black and Grey or other

Dimensions : 1800mm x 2400mm ,2100mm x 2400mm or Customized

Salt Spray Testing : Pass

Treatment : Powder Coated ,Hot Dipped Galvanized

Technical : Punch Pipes and Welding etc

Nick Name : Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence

Upright Pipes : 25mm x 25mm x 1.20mm,1.50mm ,1.6mm etc

Rails : 40mm x 40mm x 1.60mm,2.0,2.5mm ,3.00mm

Post : 65mm x 65mm x 2.00mm x 3000mm

Popular : Powder Coated Stain Black

Apllication : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

Accessoires : 1pcs post caps,4 pcs bracket ,16 pcs self drilling screw

Contact Now

Sydney Garrison Fence
Materials:
Q235
Color:
Black And Grey Or Other
Dimensions:
1800mm X 2400mm ,2100mm X 2400mm Or Customized
Salt Spray Testing:
Pass
Treatment:
Powder Coated ,Hot Dipped Galvanized
Technical:
Punch Pipes And Welding Etc
Nick Name:
Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental Steel Fence
Upright Pipes:
25mm X 25mm X 1.20mm
Rails:
40mm * 40mm * 1.60mm
Post:
65mm X 65mm X 2.00mm X 3000mm
Popular:

Powder Coated Stain Black
Apllication:
Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

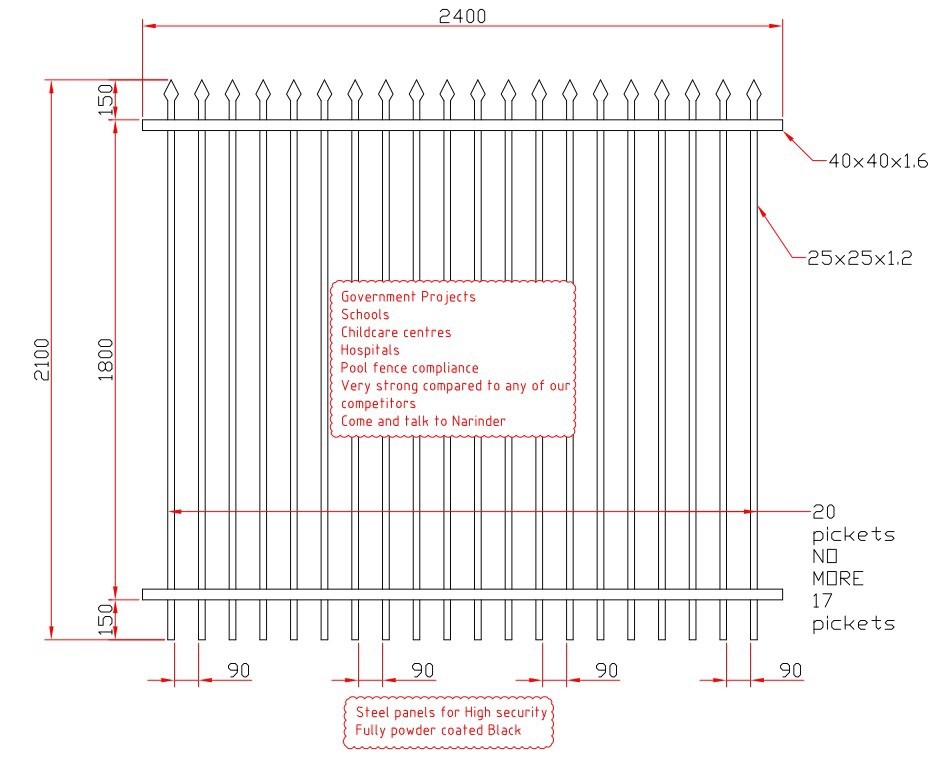

2.wrought iron fence panel drawings and common specifications:
Sydney Garrison Fence
wrought iron fence panel specification introduction:

1. Heavy duty Crimp top picket steel fence in Black color only

2.Width 2400mm x Height 1800mm and Width 2100mm x Height 1800mm

3.40x40x1.6mm top rail,25x25x1.2mm Verticals

4. There are 17 vertical pickets 20x20mm with diamond crimped on top.

5. Gap in between the pickets is110mm

6. 60x60x2mm thick post - these are 3m long each not 2.6m long as others supply.

7. Normal fence powder coated brackets

8. Security fence brackets (powder coated )

9. Caps for 60x60 posts (powder coated )

10. Phosphate treated before powder coating (Very Important)
Every parts detail introduction for wrought iron fence panel:
Pickets top is so important. It must sealed very well on the top, or it is easy to rust. We can insure you sealed very well pickets. Which highly improved the lifetime of the fence:
Sydney Garrison FenceSydney Garrison Fence
Horizontal Rails:

Type 1: Punch round hole on 20*40mm rail or 40*40mm or 45*45mm rail

Type2: Punch square hole on 40*40mm rail or 20*40mm or 45*45mm rail
Types of Gates

Single Gates;Double Opening gates;Sliding Gate;Suspended gate
Sydney Garrison Fence
Why choose us
Technology Procedure:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2. Phosphate conversion coating: Promote adhesion between steel and coating film;
3. Polyester colorful coating: With extra anti-UV rays, corrosion and self cleaning.
Why choose us ?
1.AkzoNobel powder coted surface makes fence easy to clean, rain wash can resume bright.
2.3-layer antiseptic treatment can preserve the newness for 10 years, decreases your expense of maintenance.
3.Advanced galvanized and powder spraying process makes rail service life 30 years even in bad conditions. Colorful surface and excellent decorative pattern meet your special demands for handrail.























Sydney Garrison Fence Manufactures

Sydney Garrison Fence Images
