Alumininum Garrison Fencing Panels

Name: Alumininum Garrison Fencing Panels
Brand: Garrison Fencing
Price: 38.88 USD

Alumininum Garrison Fencing Panels Manufactures

Brand Name : Garrison Fencing

Model Number : Garrison-1200mm-1500mm-1800mm-2100mm-2400mm

Certification : AS/NZS1163& AS/NZS4506-1998

Place of Origin : New Zealand And Australia Design

MOQ : 100

Price : 38.88$

Payment Terms : TT 30% deposit balance 70% at sight of done cargo

Supply Ability : 5000

Delivery Time : 7 days

Packaging Details : Metal Pallet With Plastic Jacket

Materials : Q235

Color : Black and Grey or other

Dimensions : 1800mm x 2400mm ,2100mm x 2400mm or Customized

Salt Spray Testing : Pass

Treatment : Powder Coated ,Hot Dipped Galvanized

Technical : Punch Pipes and Welding etc

Nick Name : Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence

Upright Pipes : 25mm x 25mm x 1.20mm,1.50mm ,1.6mm etc

Rails : 40mm x 40mm x 1.60mm,2.0,2.5mm ,3.00mm

Post : 65mm x 65mm x 2.00mm x 3000mm

Popular : Powder Coated Stain Black

Apllication : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

Accessoires : 1pcs post caps,4 pcs bracket ,16 pcs self drilling screw

Contact Now

Steel fence	Galvanized steel pipe or other steel section
Aluminum fence	Aluminum Alloy tube or alu profile 6063/6061/6005/6060, T5/T6

2. Surface treatment

Option 1	Galvanized steel + powder coated
Option 2	Aluminum Alloy + powder coated
Option 3	Hot galvanized
Powder option	Camel or Dupont Huajia

3. Fence panel and gate normal Size:

Height(mm)	400mm-2400mm
Width(mm)	1200mm-6000mm
Horizontal tube (mm)	2525,3030 3825,3535,3838,4040,4545,5050
Vertical tube(mm)	Round pipe	Φ16mm,Φ19mm, Φ20mm, Φ25mm
	Square tube	1616,1919,2020,2525
CTC Distance(mm)	80mm,98mm,100mm,104mm,110mm or customize

Hercules Spear top fence Size

Item No.	Panel Size (mm)	Rails (mm)	Pickets (mm)	Rail No.
AR2124	2100mm High X 2400mm Wide	40X40X2.5	25X25X2.0		2
AR2124	2100mm High X 2400mm Wide	40X40X2.0	25X25X1.6		2
AR2124	2100mm High X 2400mm Wide	40X40X1.6	25X25X1.2		2
AR1824	1800mm High X 2400mm Wide	40X40X2.5	25X25X2.0		2
AR1824	1800mm High X 2400mm Wide	40X40X2.0	25X25X1.6		2
AR1824	1800mm High X 2400mm Wide	40X40X1.6	25X25X1.2		2
AR1524	1500mm High X 2400mm Wide	40X40X2.0	25X25X1.6		2
AR1524	1500mm High X 2400mm Wide	40X40X1.6	25X25X1.2		2
	Cap post 65X65mm (wall thickness 1.6mm - 3mm)	Cut length
	Die Casting Braket	Four holes

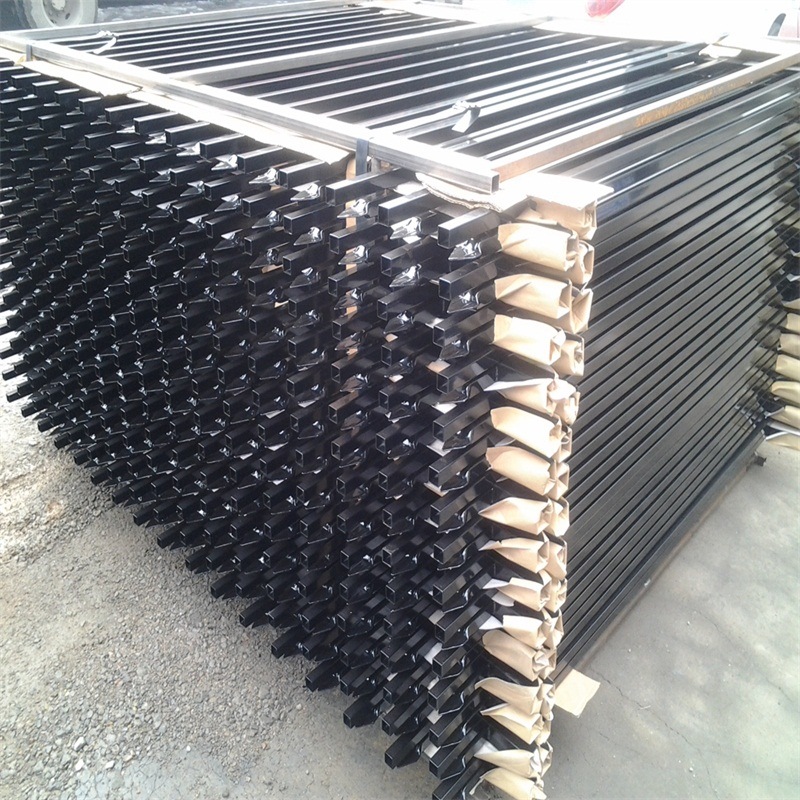

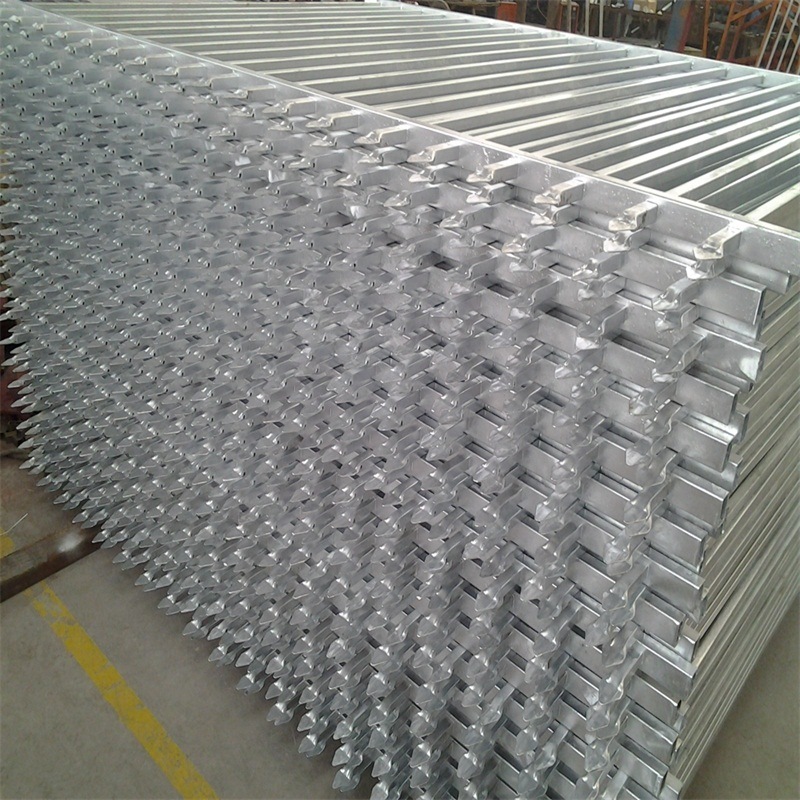

Product show

Alumininum Garrison Fencing Panels

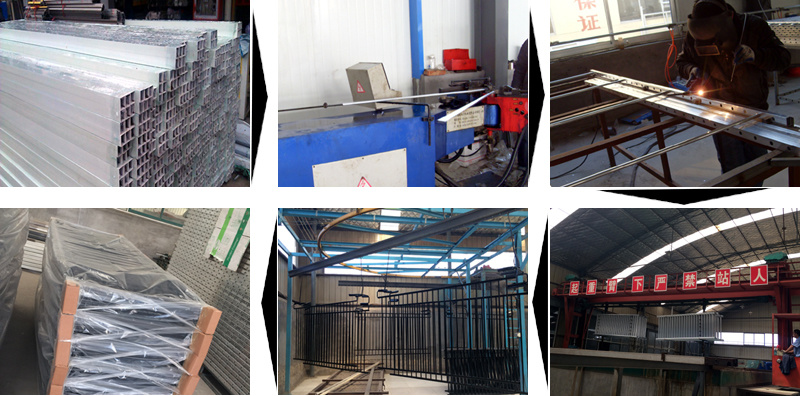

Production flow

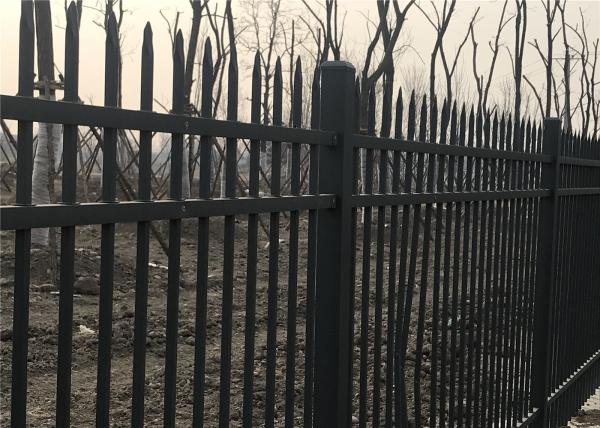

Product usage

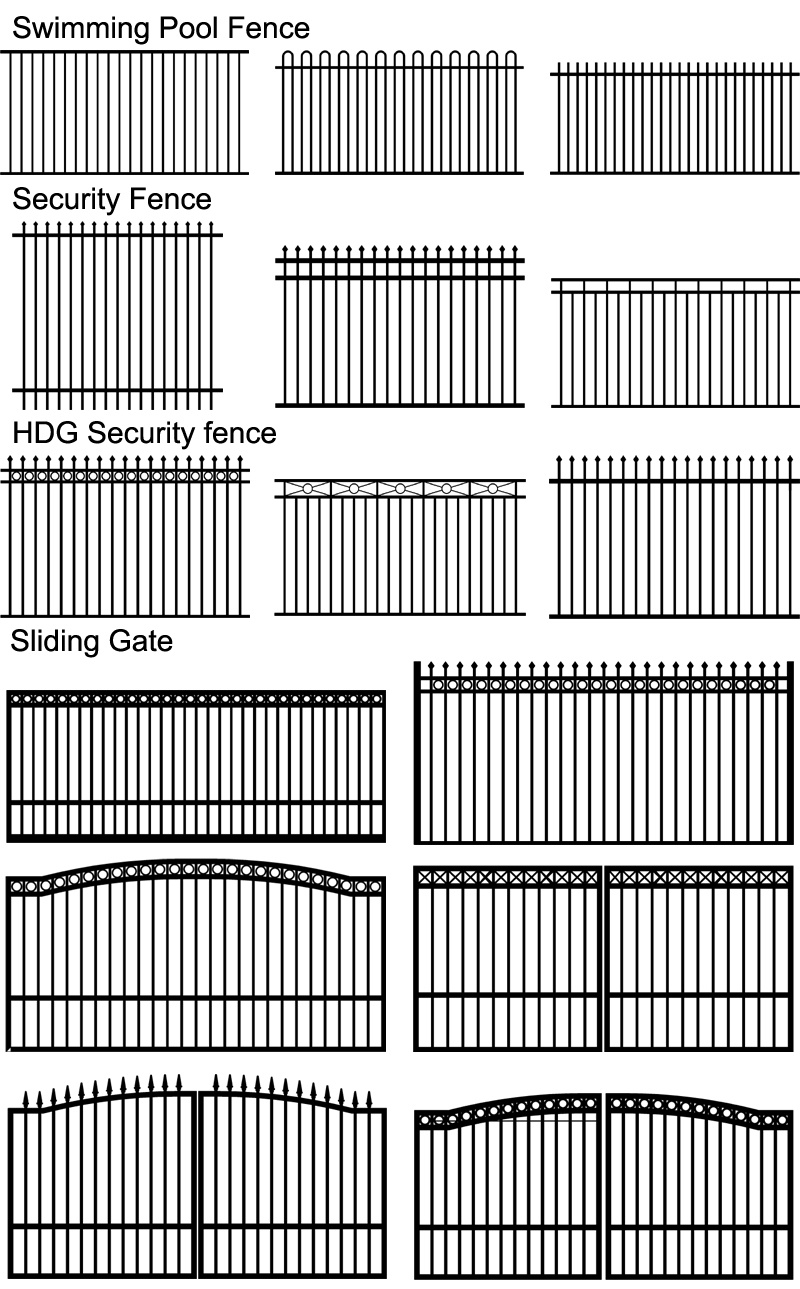

Other fence style

Company Show

LNF is a professional metalwork manufacturer in China, our main products includes steel fence, gate and accessories, aluminum fence, gate and accessories, steel frame and other some metal products according to customer special request.

We have professional factory and modern workshop, and we have technology team of 10 person, we can design and produce according to customer special request. We have professional QC team to track and check our product quality.

We have one automatic electrostatic spraying production line, and about 40 kinds of equipments of stamping, punching, drilling, bending, welding and others, we can make various process of steel products and pipe fittings.

We have about 10 years exported history, we have more than 20 countries' customers, our products are exported to America, Canada, Europe, Australia and southeast Asia etc.

FAQ

1, Q: Are you a manufacturer?
A: Yes, we have 10 Years manufacturing experience.
2, Q: What information should I provide, if I want a lowest quotation?
A: The specification of the product, the size and quantity you want.
3, Q: Can I customize the products?
A: yes, as long as provide specifications, drawings, can do what you want products

Why Choose Us?

1. Advanced technology, high quality products and reasonable price!
2. Good service, the customization and trial order are both accepted.
3. A talent and experienced team.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. 10 years production experience.
