Steel Tubular Fencing 2.1m x 2.4m Rail 45mm*45mm Spacing 100mm Upright 30mm*30mm Picket Fence Panels
1.Product brief introduction
(1). Heavy duty Crimp top security fence in Black colour only
(2). Width 2400mm x Height 2100mm Crimp top diamond shape
(3). 40x40x1.6mm top rail, 25x25x1.2mm Verticals
(4). There are 17 vertical pickets 25x25mm with diamond crimped on top.
(5). A gap in between the pickets is 110mm
(6). 65x65x2mm thick post - these are 3m long each not 2.7m long as others supply.
(7). Normal fence powder coated brackets
(8). Security fence brackets ( powder coated )
(9). Caps for 65x65 posts (powder coated )
(10). Phosphate treated before powder coating (Very Important) - Not many suppliers even know about this process.
(11).All panels are fully protected
2.Product detailed introduction
1) Our panels are made out of the thicker material top and bottom rails 40x40x1.6 and 25x25x1.2 for all verticals
2) A gap between the verticals is 110mm compared to wider gaps with others.
3) We use for all our panels galvanized material only.
4) Very important is that we phosphate wash our panels before powder coating which means a very high-quality powder coating which will long last many many years compared to my competitors.
3.Usages:
Widely used in villas, community, gardens, schools, factories and other flower beds, lawns, industrial and mining enterprises, financial institutions, sports stadiums, convention centers, squares, roads, balconies, residential use, its flowing lines, simple and beautiful and full of rich modern residential sensual, garden Light, villas era of high-grade. Simple installation, easy maintenance, easy to clean, affordable, eliminating maintenance.
4.Common specification:
Square pipe:
| Rail(mm) | Picket(mm) | Center space(mm) | Post(mm) |
| 32*32*1.6 40*40*1.6 45*45*1.6 32*32*1.2 40*40*1.2 40*40*1.2 32*32*1.0 40*40*1.0 45*45*1.0 | 16*16*1.2 19*19*1.2 25*25*1.2 16*16*1.0 19*19*1.0 25*25*1.0 16*16*0.8 19*19*0.8 25*25*0.8 | 90 100 110 116 124 130 116 124 130 | 50*50*1.5 60*60*2.0 65*65*2.0 75*75*2.0 80*80*2.0 100*100*2.0 |
Tubular fence:
| Panel height(mm) | From 900-1800 |
| Panel width(mm) | 2400 or 3000 |
| Rail | 38*25*1.6mm |
| Tube specs | 16mm |
| Tube spacing | 90mm or 98mm centres |
| Inground post height(mm) | From 1500 to 2400 |
| Flanged post height(mm) | From 1300 to 1900 |
| Standard post specification | 50*-50*1.6mm 60*60*2.0mm |
5.Assembled:
1>Cut Shot
2>Punching Holes
3>Acid-Washing
4>Rich-Zinc Powder Coating
5>Polyester Color Powder Coating
6>Assembly
7>packing
Welded:
1>Cut Shot
2>Welded
3>Acid-Washing
4>Rich-Zinc Powder Coating
5>Polyester Color Powder Coating
6>packing
|
|

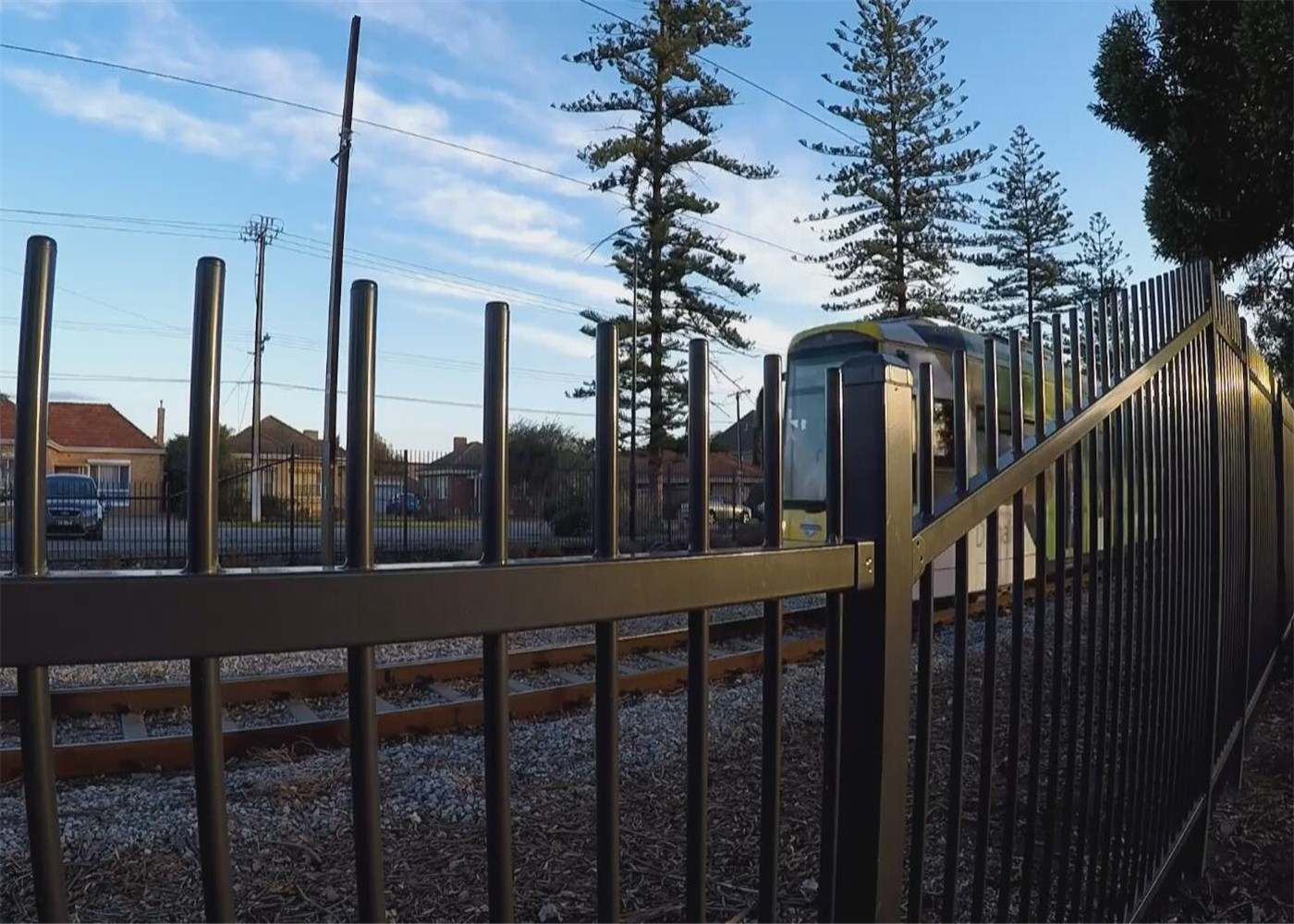

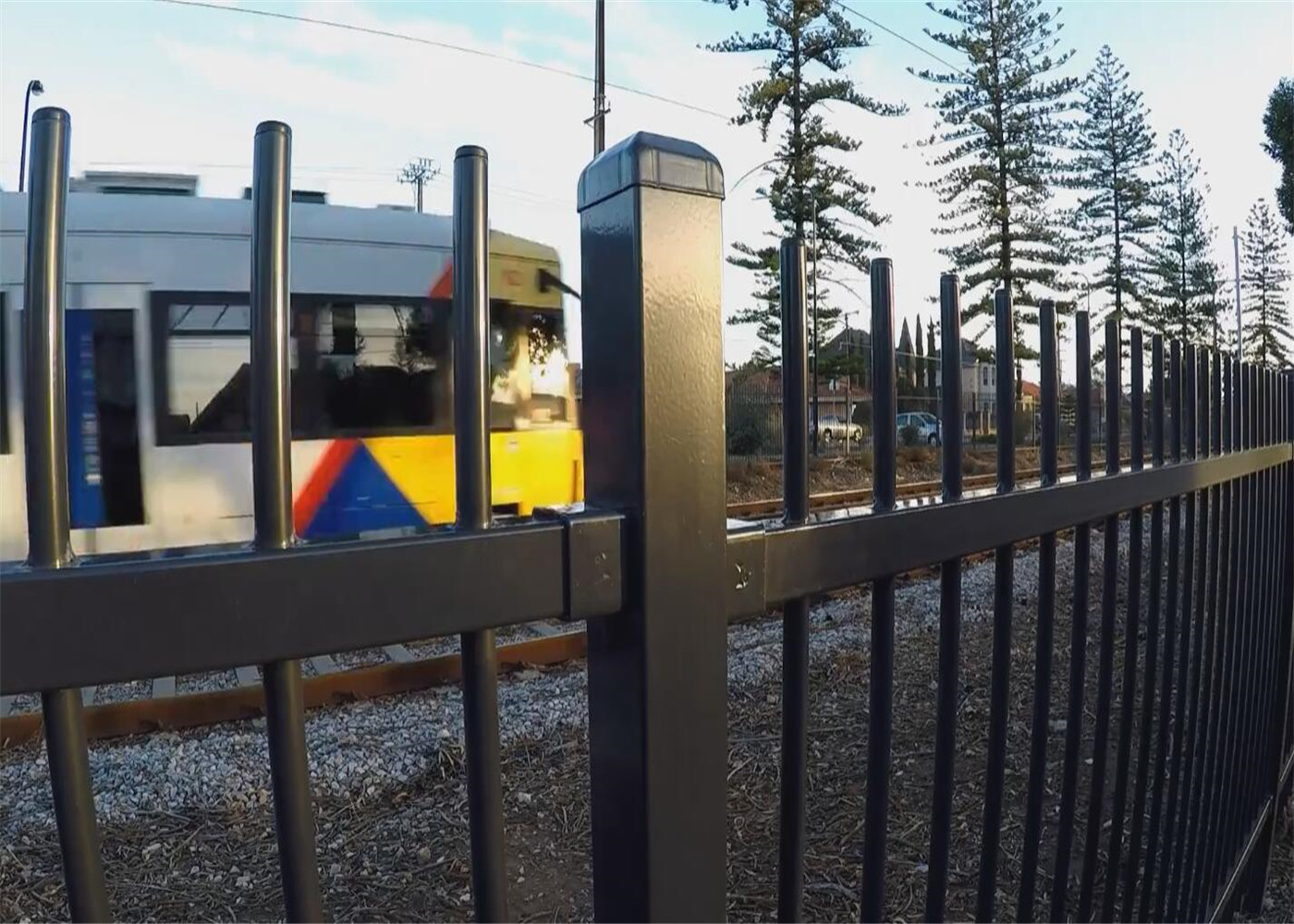

Steel Tubular Fencing 2.1m x 2.4m Rail 45mm*45mm Spacing 100mm Upright 30mm*30mm Picket Fence Panels Images
|
