Ornamental Garrison Tubular Security Fence Panels 45mm*45mm x 1.6mm thick 25mm x 25mm picket crimped spear or flat top

Name: Ornamental Garrison Tubular Security Fence Panels 45mm45mm x 16mm thick 25mm x 25mm picket crimped spear or flat top
Brand: LN Garrison Fence
Price: 9.88 USD

Ornamental Garrison Tubular Security Fence Panels 45mm*45mm x 1.6mm thick 25mm x 25mm picket crimped spear or flat top Manufactures

Brand Name : LN Garrison Fence

Model Number : Garrison-1200mm-1500mm-1800mm-2100mm-2400mm

Certification : AS/NZS1163& AS/NZS4506-1998

Place of Origin : New Zealand And Australia Design

MOQ : 100

Price : 9.88$

Payment Terms : TT 30% deposit balance 70% at sight of done cargo

Supply Ability : 10001

Delivery Time : 7 days

Packaging Details : Metal Pallet With Plastic Jacket

Materials : Q235

Color : Black and Grey or other

Dimensions : 1800mm x 2400mm ,2100mm x 2400mm or Customized

Salt Spray Testing : Pass

Treatment : Powder Coated ,Hot Dipped Galvanized

Technical : Punch Pipes and Welding etc

Nick Name : Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence

Upright Pipes : 25mm x 25mm x 1.20mm

Rails : 40mm x 40mm x 1.60mm

Post : 65mm x 65mm x 2.00mm x 3000mm

Popular : Powder Coated Stain Black

Apllication : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

Contact Now

**Ornamental Garrison Tubular Security Fence Panels 45mm*45mm x 1.6mm thick 25mm x 25mm picket crimped spear or flat top**

TOPFENCE co-design crimped spear and flat top Garrison Fence was widely application with following

Commercial/industrial ornamental
ornamental security fence
Store warehouse tubular fence

Horizontal 2 rail 40mm*40mm*1.6mm 17 upright x 25mm x 25mm x 1.20mm is a standard of western Australia such Perth and fermented WA area spacing from tubing to another tubing 108mm panels size

available 1800mm/2100mm/2400mm* 2400mm width.

Note: when RHS tubing 40mm thickness than 1.60mm during the punched process the defect rate will increase 30% so that is why exclude materials weight reason 2.0mm thickness garrison fence panels was always too much higher than thickness than 1.6mm.Color of garrison fence available all AKZO NOBEL interpon powder colour .and we have perfect packing solutions for powder coated interpon brand garrison fence panels call us 86-18631889222 we will let you know more about it

Garrison fence panels at top fence available tubing face to tubing face welding no need insert upright 25mm tubing to 40mm RHS post centre positions and punched hole then insert 25mm tubing and the price of them was basically same

Ornamental Garrison Tubular Security Fence Panels 45mm*45mm x 1.6mm thick 25mm x 25mm picket crimped spear or flat top

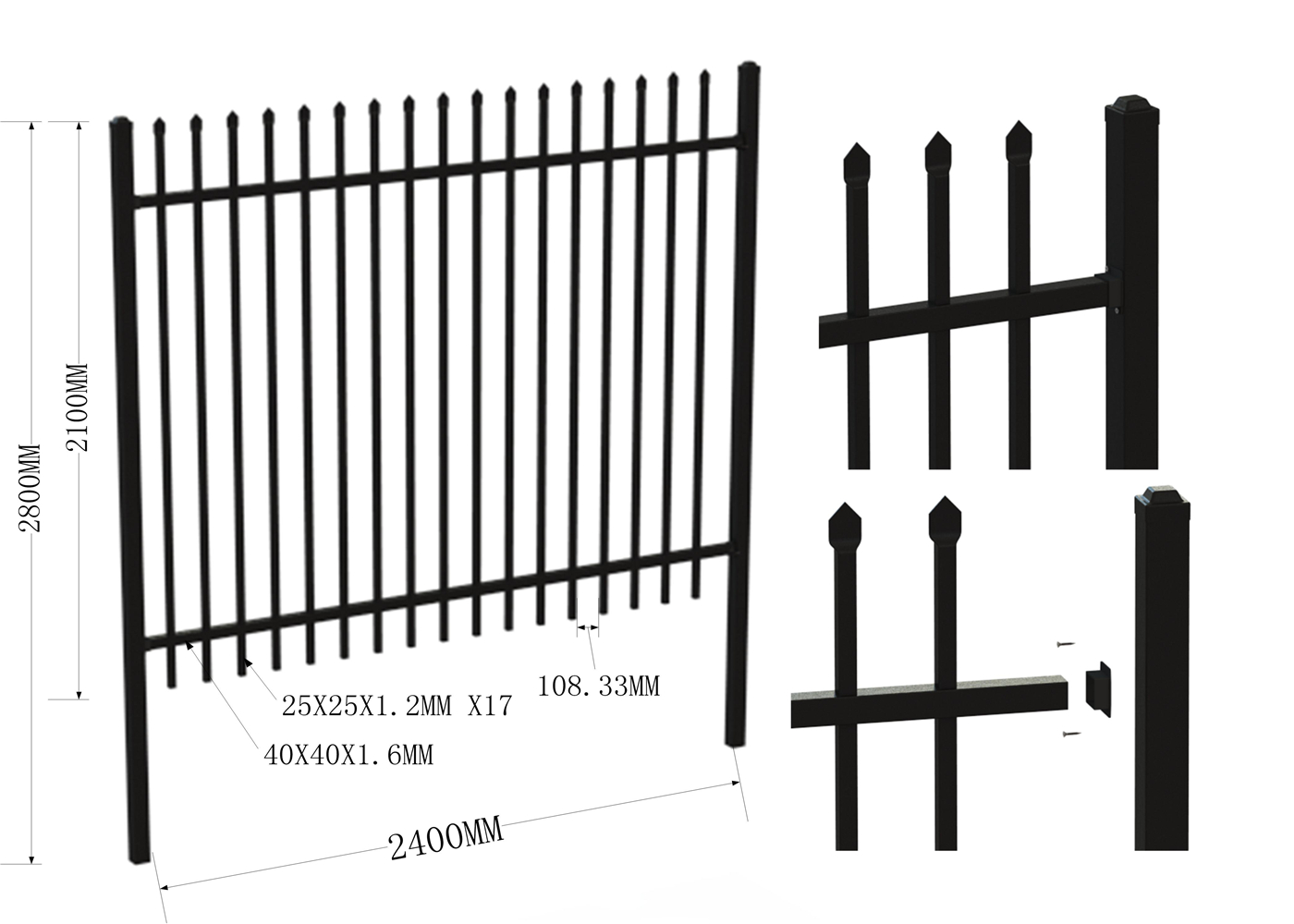

Above 2 design drawing showing how to welding them, garrison fence panels we supplied all full welding at all by a bronze wire to guarantee the quality of fencing panels was robustness

name	length	width	height	thickness
Square post	50mm-80mm	50mm-80mm	1.5m-3m	1mm-3mm
Square rail	32mm-65mm	32mm-65mm	1.5m-3m	0.5mm-2mm
Square vertical pipe	20mm-32mm	20mm-32mm	1.5m-3m	0.5mm-2mm
Panel		1m-3m	1m-3m
Vertical square pipe distance	80mm-200mm
Polyester painting colour	any RAL series colour (Normal RAL6005-dark Green, RAL9005-black
Welded	Iron welded; Silicon Bronze.

The main manufacture process:
1>Pipe punching: The hole is equality.
2>Panel Welded: a Welded point is strong, but the welding spot is small, made your fence looked beautiful.
3>Polishing: Make sure the edge smooth, cutting parts must be flat polished, there shall not be cut marks.
4>Shot blasting: Make the surface smooth, improve the adhesion of powder.
5>Powder coating: powder coated to exacting standards, by professionals who have invested heavily in
"State of the Art" technology.
6>Packing: Each panel packed with air bubble film, then in the iron pallet, and the outside have a total air bubble

Why customer choose you?
1) Safety packing
2) Short lead time
3) Reasonable price
4) High quality
5) Long-life using

Ornamental Garrison Tubular Security Fence Panels 45mm*45mm x 1.6mm thick 25mm x 25mm picket crimped spear or flat top Images
